Components [04/2013 - ]

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

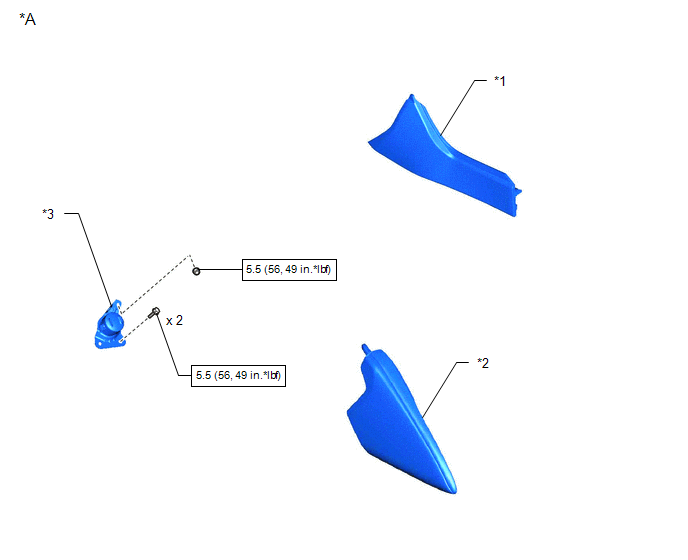

Fig 1: Kick-Down Switch Replacement Components With Torque Specifications [04/2013 - ]
GTY463237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for LHD - -
*1 FRONT NO. 1 CONSOLE BOX INSERT *2 INSTRUMENT PANEL FINISH PANEL END LH
*3 KICK DOWN SWITCH ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
