Components [08/2015 - 09/2020]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

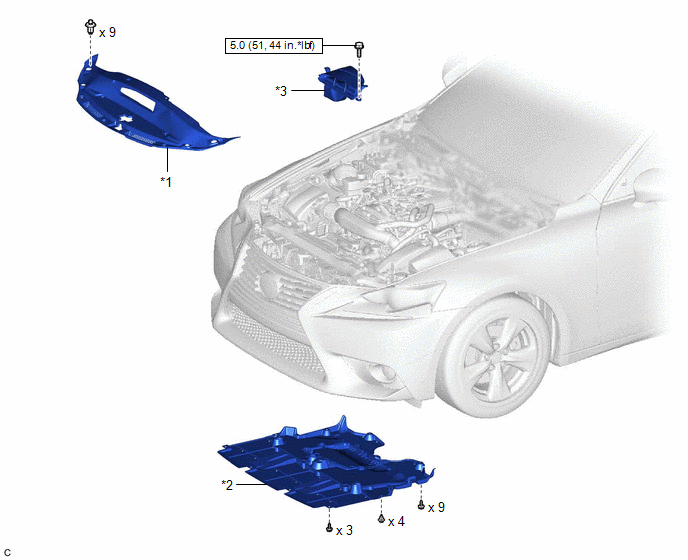

| *1 |
COOL AIR INTAKE DUCT SEAL |
*2 |
ENGINE UNDER COVER |
| *3 |
INLET NO. 1 AIR CLEANER |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

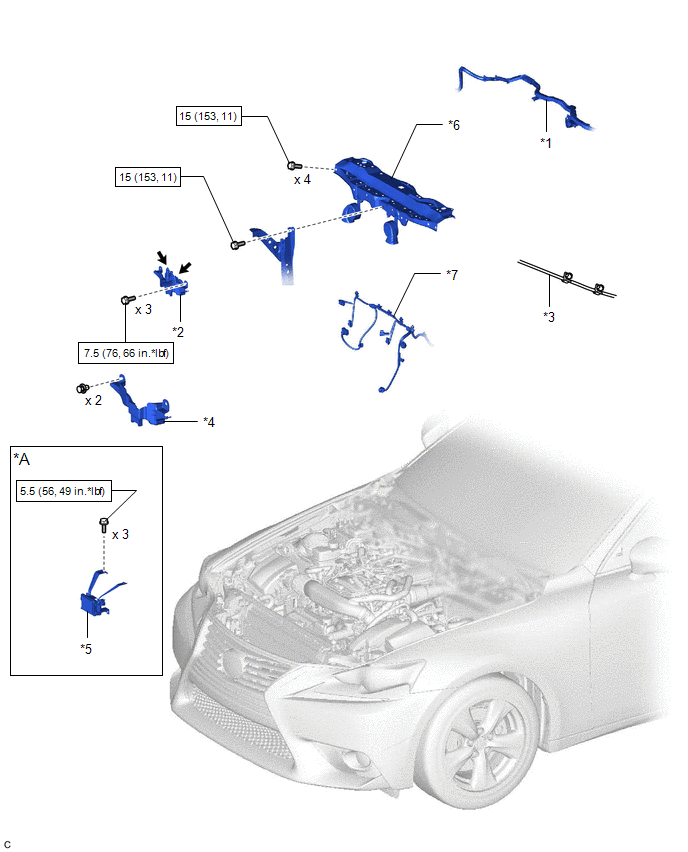

| *A |
w/ Dynamic Radar Cruise Control System |
- |
- |
| *1 |
ENGINE ROOM MAIN WIRE |
*2 |
HOOD LOCK ASSEMBLY |
| *3 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
*4 |
HOOD LOCK RELEASE LEVER PROTECTOR |
| *5 |
MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
*6 |
UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
| *7 |
WIRE HARNESS |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
 |
MP grease |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

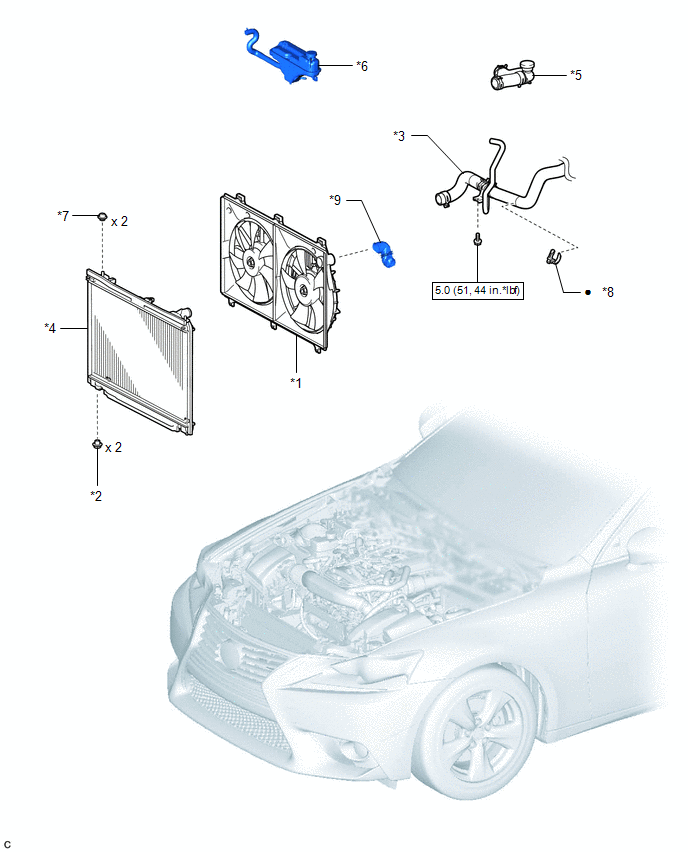

| *1 |
FAN SHROUD ASSEMBLY |
*2 |
LOWER RADIATOR SUPPORT |
| *3 |
NO. 2 RADIATOR HOSE SUB-ASSEMBLY |
*4 |
RADIATOR ASSEMBLY |
| *5 |
RADIATOR HOSE SUB-ASSEMBLY |
*6 |
RADIATOR RESERVE TANK ASSEMBLY |
| *7 |
RADIATOR SUPPORT CUSHION |
*8 |
RADIATOR HOSE CLAMP |
| *9 |
ENGINE ROOM ECU OUTLET DUCT |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
