Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 1 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - ]

  2. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 4 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - ]

  3. REMOVE ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 11 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 11 [09/2020 - ]

  4. REMOVE ENGINE ROOM ECU OUTLET DUCT

    See step  9

  5. DISCONNECT ENGINE ROOM MAIN WIRE

    See step  10

  6. DRAIN ENGINE COOLANT

    See step  2

  7. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    See step  11

  8. REMOVE RADIATOR HOSE SUB-ASSEMBLY

    See step  12

  9. DISCONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY
    1. Disconnect the No. 2 radiator hose sub-assembly from the radiator hose clamp.
      GTY654939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radiator hose clamp from the fan shroud assembly.
    3. Remove the bolt to disconnect the No. 2 radiator hose sub-assembly from the fan shroud assembly.
  10. REMOVE FAN SHROUD ASSEMBLY

    See step  15

  11. REMOVE COOLING FAN WIRE

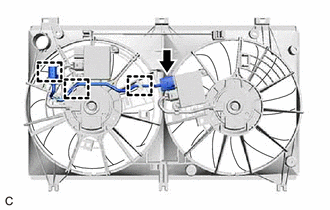

    1. Disconnect the cooling fan wire connector.
      GTY639278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps to remove the cooling fan wire.
  12. REMOVE FAN

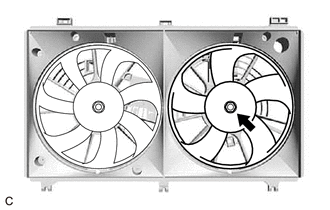

    1. Remove the nut and fan.
      GTY639274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 FAN

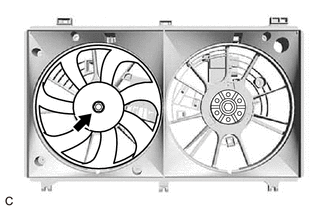

    1. Remove the nut and No. 2 fan.
      GTY639276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE COOLING FAN MOTOR

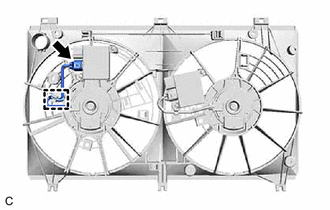

    1. Disconnect the cooling fan motor connector.
      GTY678397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

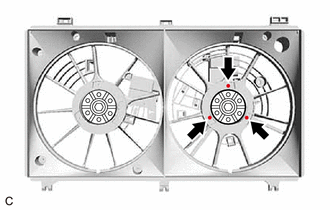

    3. Remove the 3 screws and cooling fan motor.
      GTY639275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 COOLING FAN MOTOR

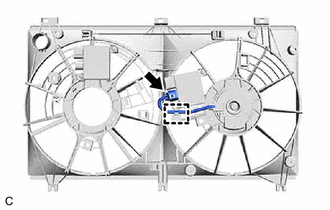

    1. Disconnect the No. 2 cooling fan motor connector.
      GTY639273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

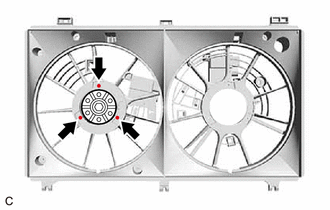

    3. Remove the 3 screws and No. 2 cooling fan motor.
      GTY639272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
