Components [08/2015 - 09/2020]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications [08/2015 - 09/2020] (1 Of 3)
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE UNDER COVER |
| *3 | INLET NO. 1 AIR CLEANER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

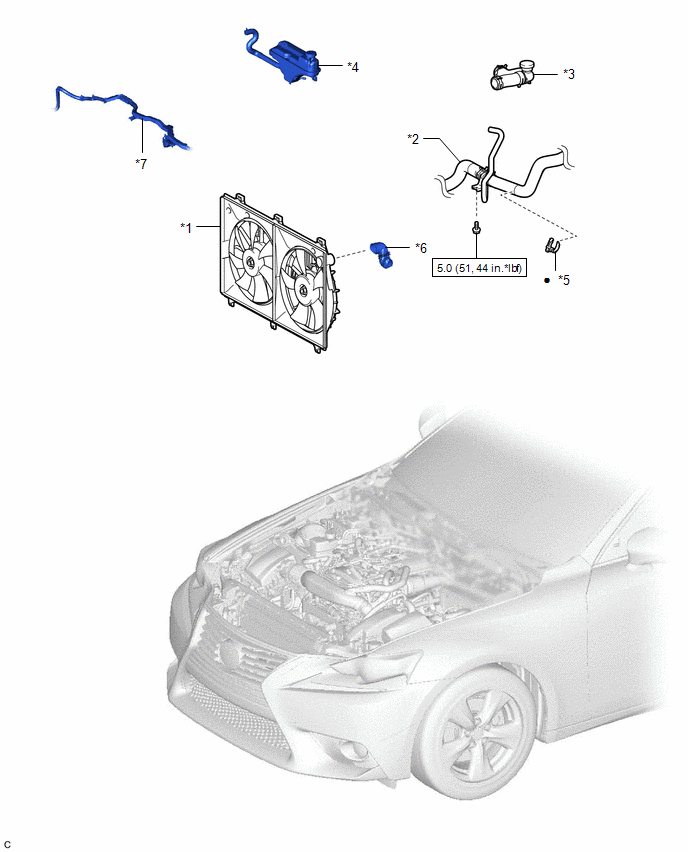

Fig 2: Cooling Fan Motor Replacement Components With Torque Specifications [08/2015 - 09/2020] (2 Of 3)
| *1 | FAN SHROUD ASSEMBLY | *2 | NO. 2 RADIATOR HOSE SUB-ASSEMBLY |
| *3 | RADIATOR HOSE SUB-ASSEMBLY | *4 | RADIATOR RESERVE TANK ASSEMBLY |
| *5 | RADIATOR HOSE CLAMP | *6 | ENGINE ROOM ECU OUTLET DUCT |
| *7 | ENGINE ROOM MAIN WIRE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

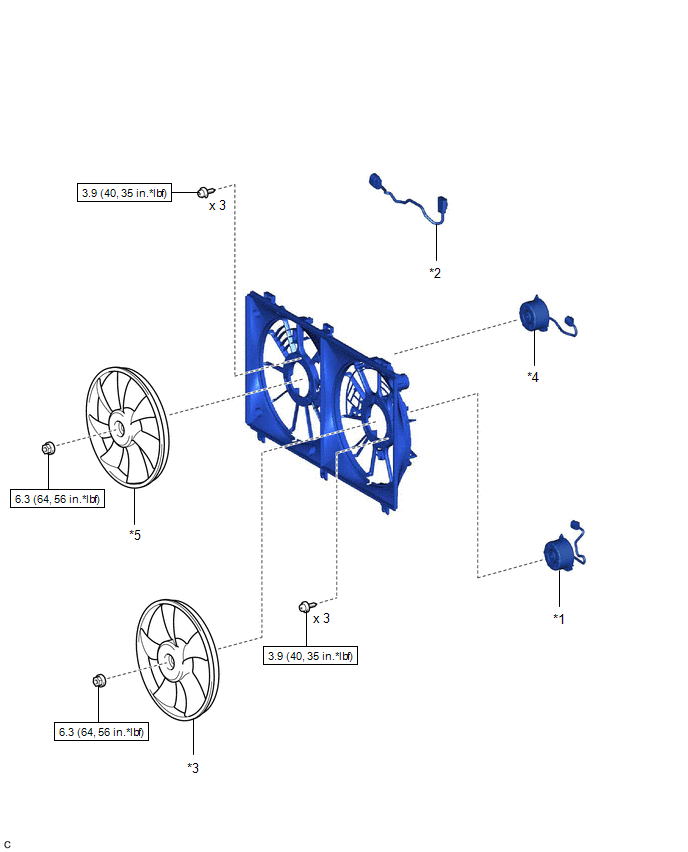

Fig 3: Cooling Fan Motor Replacement Components With Torque Specifications [08/2015 - 09/2020] (3 Of 3)
| *1 | COOLING FAN MOTOR | *2 | COOLING FAN WIRE |
| *3 | FAN | *4 | NO. 2 COOLING FAN MOTOR |
| *5 | NO. 2 FAN | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
