Parts Location [09/2020 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

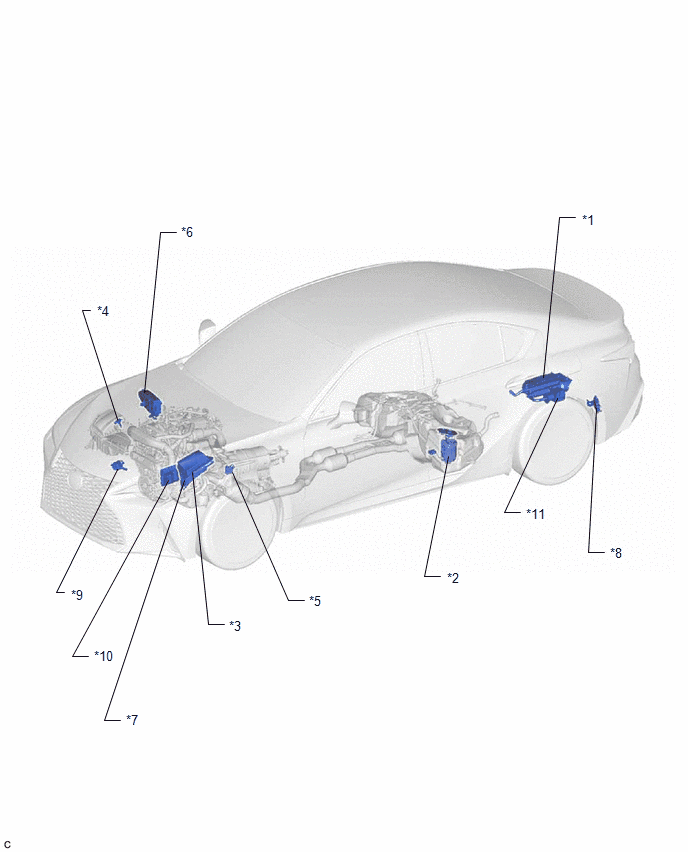

| *1 |
CANISTER |
*2 |
FUEL PUMP (for Low Pressure Side) |
| *3 |
SEMICONDUCTOR PWR INTEGRATION ECU |
*4 |
MASS AIR FLOW METER SUB-ASSEMBLY |
| *5 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
*6 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *7 |
NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY |
*8 |
FUEL PUMP CONTROL ECU |
| *9 |
ELECTRIC WATER PUMP ASSEMBLY |
*10 |
ECM |
| *11 |
CANISTER PUMP MODULE |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Camshaft) |
| *3 |
FUEL PRESSURE SENSOR (for Low Pressure Side) |
*4 |
FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *5 |
KNOCK CONTROL SENSOR |
*6 |
NO. 1 TURBO PRESSURE SENSOR |
| *7 |
PORT FUEL INJECTOR ASSEMBLY |
*8 |
PURGE VSV |
| *9 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*10 |
VACUUM REGULATING VALVE ASSEMBLY |
| *11 |
DIRECT FUEL INJECTOR ASSEMBLY |
*12 |
NO. 2 TURBO PRESSURE SENSOR |
| *13 |
CRANKSHAFT POSITION SENSOR |
*14 |
IGNITION COIL ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
AIR FUEL RATIO SENSOR |
*2 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *3 |
ENGINE OIL TEMPERATURE SENSOR |
*4 |
HEATED OXYGEN SENSOR |
| *5 |
OIL PRESSURE SWITCHING VALVE ASSEMBLY |
*6 |
OIL PRESSURE SENDER GAUGE ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
*2 |
AIR BY-PASS VALVE ASSEMBLY |
| *3 |
CAMSHAFT POSITION SENSOR (for Intake Camshaft) |
*4 |
CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
*2 |
STOP LIGHT SWITCH ASSEMBLY |
| *3 |
DLC3 |
*4 |
COMBINATION METER ASSEMBLY |
