Components [08/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

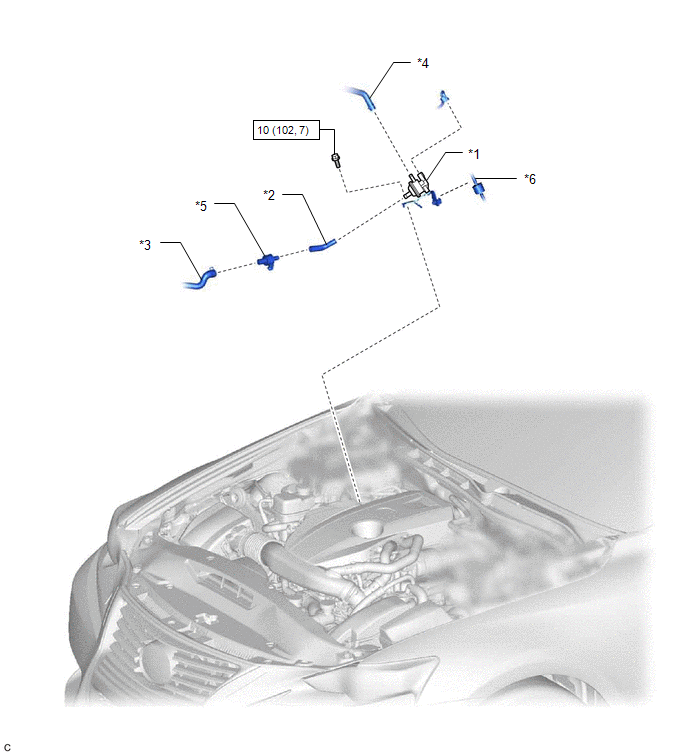

Fig 1: Purge Valve Replacement Components With Torque Specifications

*1	PURGE VALVE (PURGE VSV)	*2	FUEL VAPOR FEED HOSE
*3	NO. 2 FUEL VAPOR FEED HOSE	*4	NO. 1 FUEL VAPOR FEED HOSE
*5	NO. 1 CHECK VALVE	*6	NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
