Components [09/2020 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

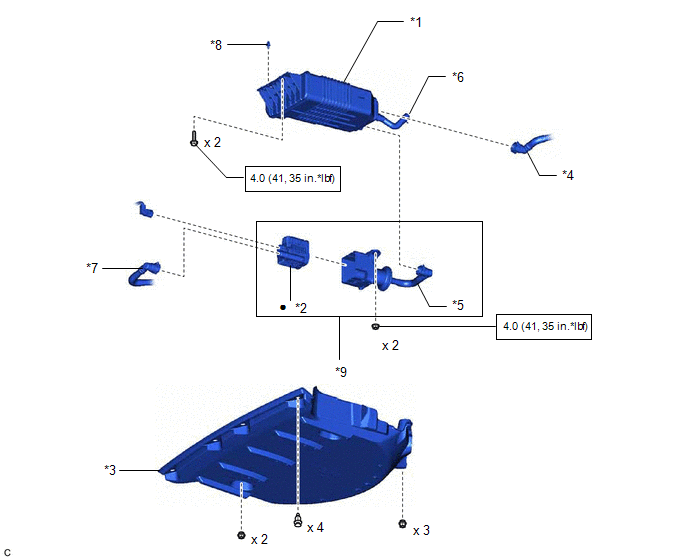

| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | LEAK DETECTION PUMP SUB-ASSEMBLY |
| *3 | NO. 1 FLOOR UNDER COVER ASSEMBLY | *4 | VENT LINE HOSE |
| *5 | NO. 2 CHARCOAL CANISTER HOSE | *6 | PURGE LINE HOSE |
| *7 | CHARCOAL CANISTER OUTLET TUBE SUB-ASSEMBLY | *8 | CHARCOAL CANISTER OUTLET GUIDE |
| *9 | NO. 2 CHARCOAL CANISTER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
