Components [08/2015 - 09/2020]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

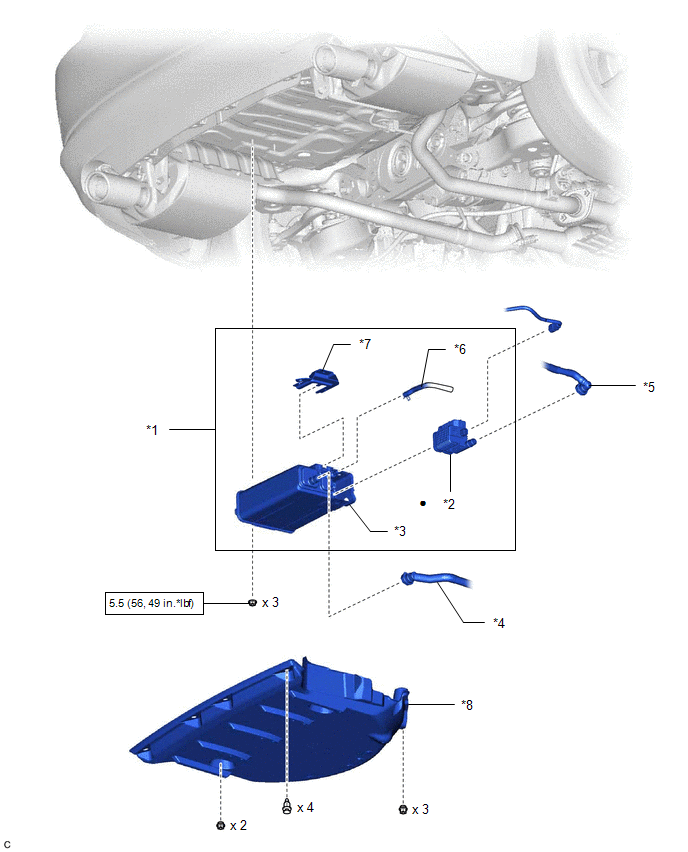

| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | LEAK DETECTION PUMP SUB-ASSEMBLY |
| *3 | CHARCOAL CANISTER SUB-ASSEMBLY | *4 | VENT LINE HOSE |
| *5 | AIR LINE TUBE | *6 | OUTLET CHARCOAL CANISTER HOSE |
| *7 | CHARCOAL CANISTER BASE BRACKET | *8 | NO. 1 FLOOR UNDER COVER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
