Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

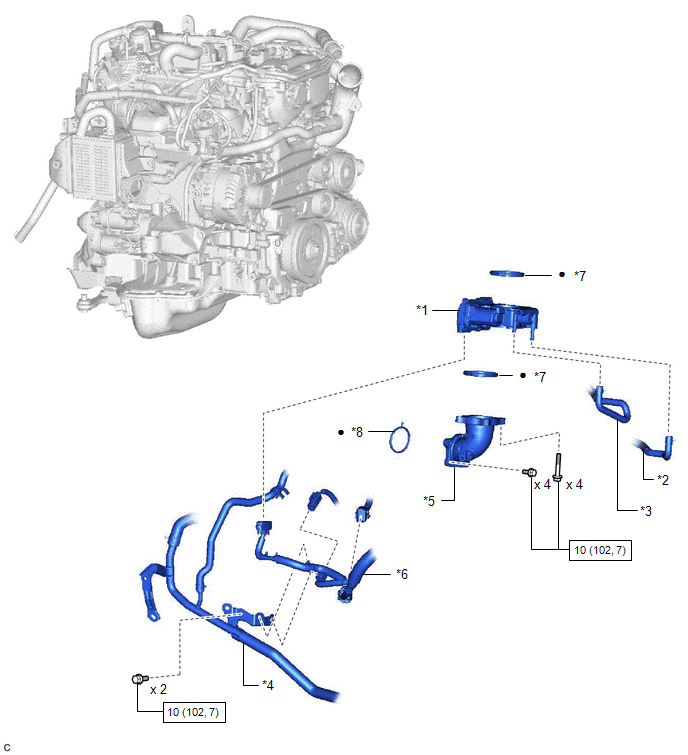

| *1 |
ENGINE UNDER COVER |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*2 |
NO. 1 WATER BY-PASS HOSE |
| *3 |
NO. 2 WATER BY-PASS HOSE |
*4 |
NO. 6 WATER BY-PASS PIPE |
| *5 |
NO. 2 AIR TUBE |
*6 |
ENGINE WIRE |
| *7 |
THROTTLE BODY GASKET |
*8 |
NO. 2 AIR TUBE GASKET |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
