Components [08/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

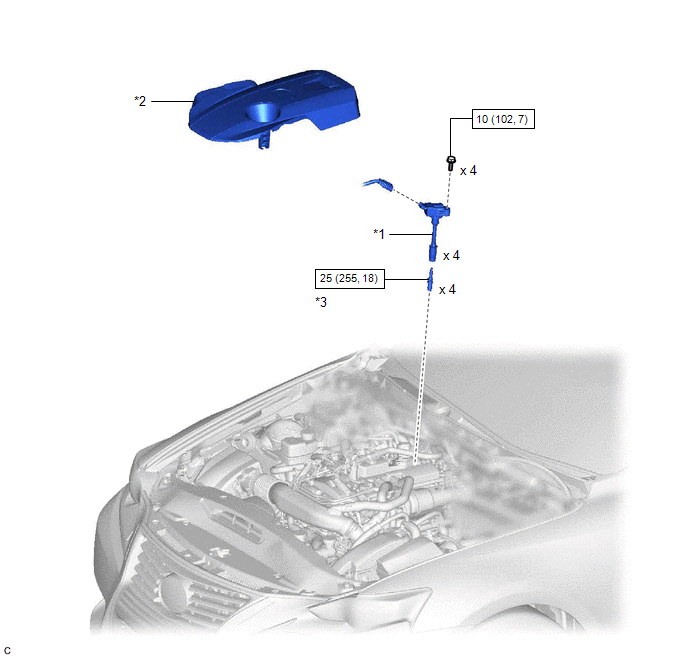

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications

*1	IGNITION COIL ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	SPARK PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
