Components [08/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

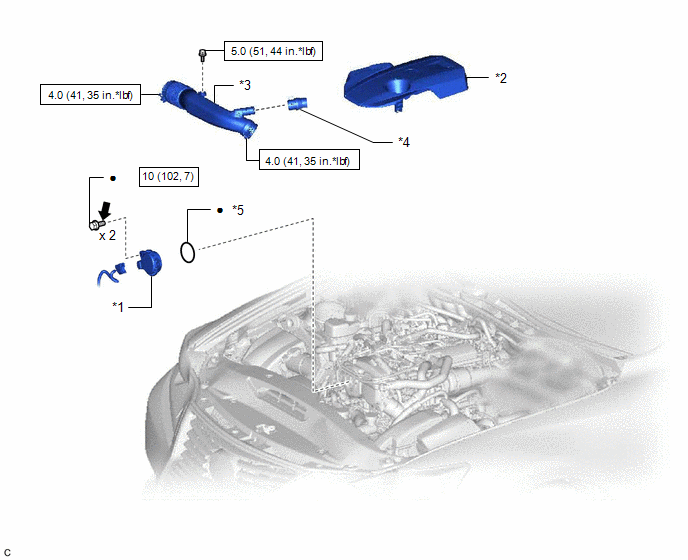

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications

*1	CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	AIR CLEANER HOSE ASSEMBLY	*4	NO. 1 VENTILATION HOSE
*5	O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part
