On-Vehicle Inspection [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to REMOVAL [08/2015 - ]

  2. INSPECT CAMSHAFT TIMING GEAR BOLT
    1. Check the stroke of the plunger in the center of the camshaft timing gear bolt.

      Standard Stroke

      4.5 mm (0.177 in.) or more

      HINT:

      When pressing the plunger, there may be a stepped feeling. This is not a malfunction.

      If the result is not as specified, replace the camshaft timing gear bolt.

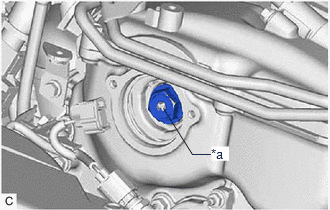

      GTY625233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plunger
  3. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to INSTALLATION [08/2015 - ]
