Components [08/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

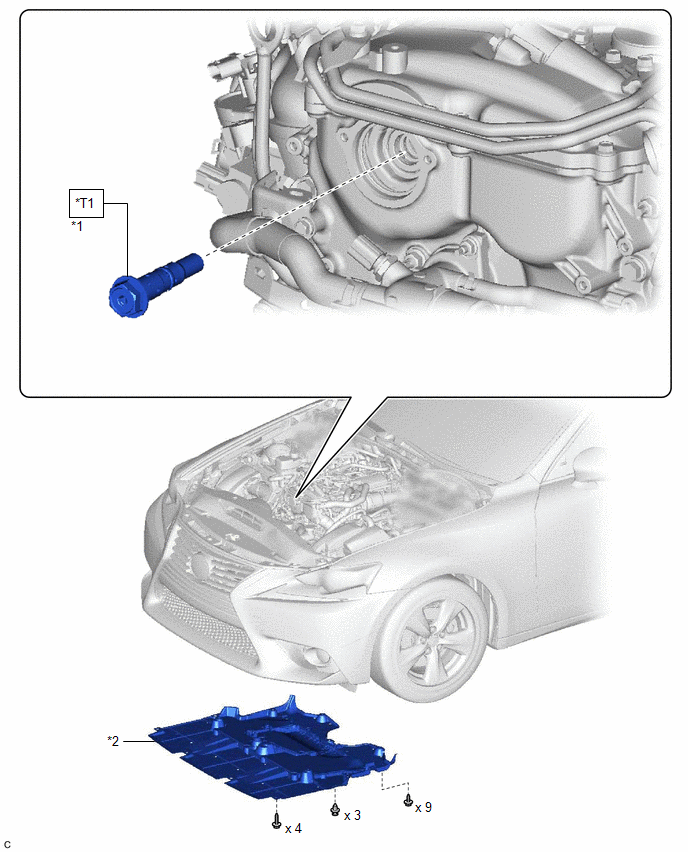

Fig 1: Camshaft Oil Control Valve (for Intake Side) Replacement Components

*1	CAMSHAFT TIMING GEAR BOLT	*2	ENGINE UNDER COVER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
*T1	Type A: 120 N.m (1224 kgf/cm, 89 ft.lbf) Type B: 95 N.m (969 kgf/cm, 70 ft.lbf)	-	-
