Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

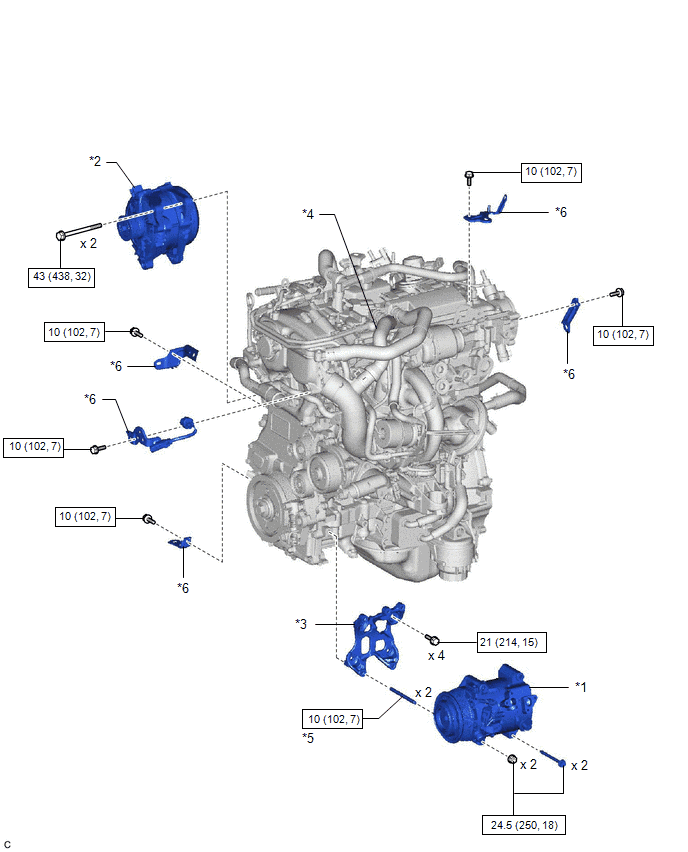

| *1 |
COMPRESSOR AND MAGNETIC CLUTCH |
*2 |
GENERATOR ASSEMBLY |
| *3 |
NO. 1 COMPRESSOR MOUNTING BRACKET |
*4 |
NO. 4 VENTILATION HOSE |
| *5 |
STUD BOLT |
*6 |
WIRE HARNESS CLAMP BRACKET |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

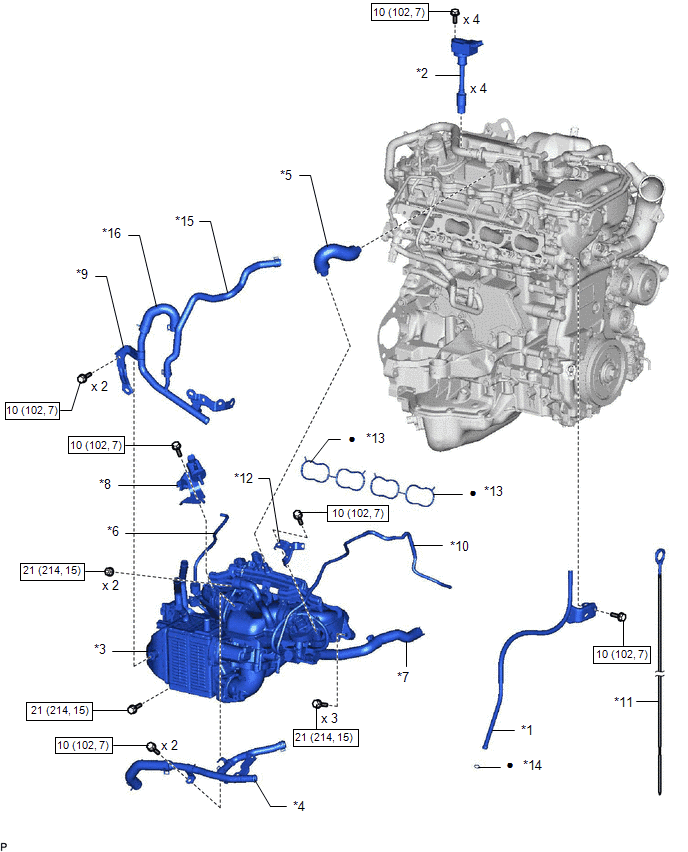

| *1 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*2 |
IGNITION COIL ASSEMBLY |
| *3 |
INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY AND THROTTLE WITH MOTOR BODY ASSEMBLY |
*4 |
NO. 2 WATER BY-PASS PIPE |
| *5 |
NO. 2 VENTILATION HOSE |
*6 |
NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY |
| *7 |
NO. 3 WATER BY-PASS HOSE |
*8 |
PURGE VALVE (PURGE VSV) |
| *9 |
WATER BY-PASS PIPE ASSEMBLY |
*10 |
VACUUM TRANSMITTING HOSE ASSEMBLY |
| *11 |
ENGINE OIL LEVEL DIPSTICK |
*12 |
WIRE HARNESS CLAMP BRACKET |
| *13 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
*14 |
O-RING |
| *15 |
NO. 2 TURBO WATER HOSE |
*16 |
NO. 9 WATER BY-PASS HOSE |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

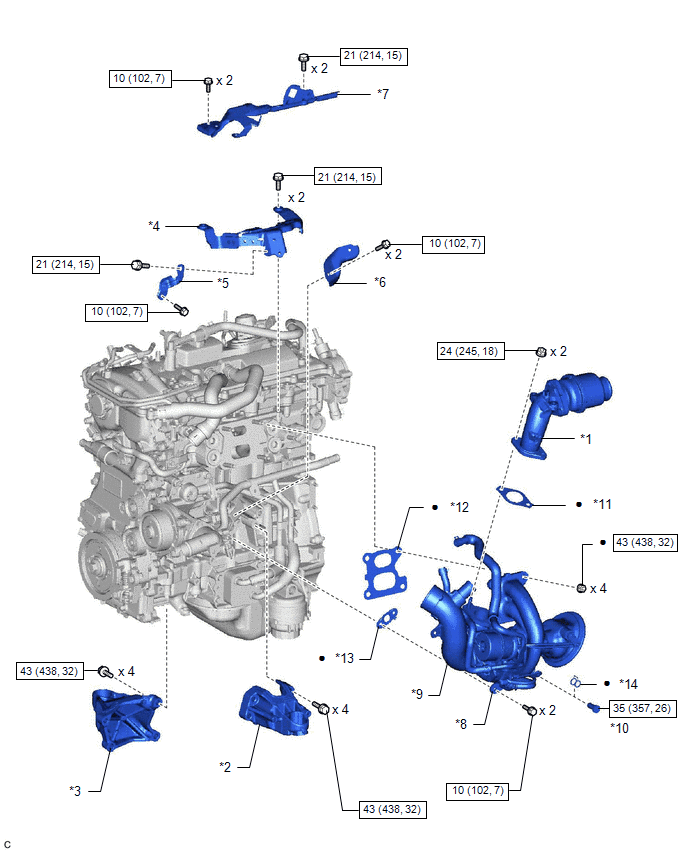

| *1 |
OUTLET COMPRESSOR ELBOW |
*2 |
FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
| *3 |
FRONT NO. 1 ENGINE MOUNTING BRACKET RH |
*4 |
NO. 1 HEAT INSULATOR BRACKET |
| *5 |
NO. 2 HEAT INSULATOR BRACKET |
*6 |
NO. 3 EXHAUST MANIFOLD HEAT INSULATOR |
| *7 |
NO. 5 EXHAUST MANIFOLD HEAT INSULATOR |
*8 |
INLET TURBO OIL PIPE SUB-ASSEMBLY |
| *9 |
TURBOCHARGER SUB-ASSEMBLY |
*10 |
UNION BOLT |
| *11 |
OUTLET COMPRESSOR GASKET |
*12 |
EXHAUST MANIFOLD TO HEAD GASKET |
| *13 |
OUTLET NO. 1 TURBO OIL GASKET |
*14 |
NO. 1 UNION BOLT GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

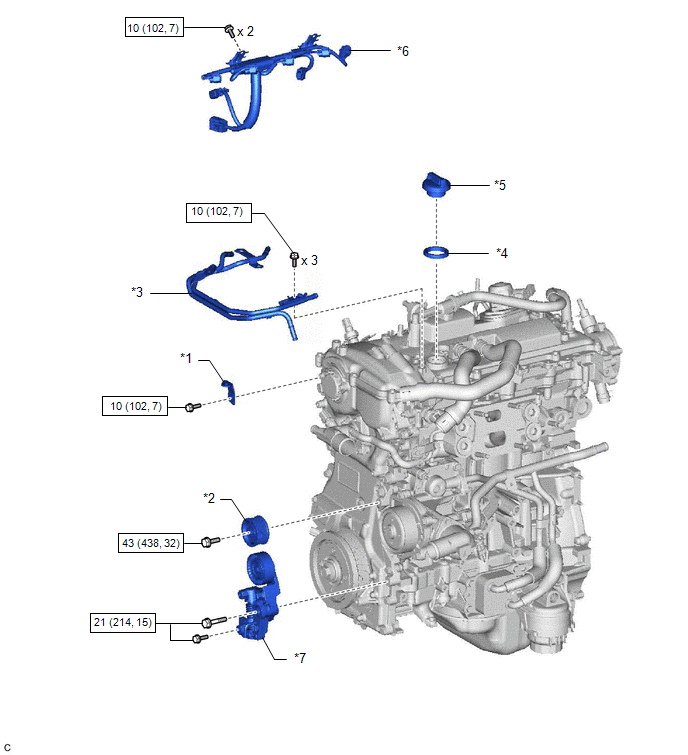

| *1 |
AIR CLEANER BRACKET |
*2 |
IDLER PULLEY SUB-ASSEMBLY |
| *3 |
NO. 1 TURBO WATER PIPE SUB-ASSEMBLY |
*4 |
OIL FILLER CAP GASKET |
| *5 |
OIL FILLER CAP SUB-ASSEMBLY |
*6 |
SENSOR WIRE |
| *7 |
V-RIBBED BELT TENSIONER ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for Type A |
*B |
for Type B |
| *1 |
DIRECT FUEL INJECTOR ASSEMBLY |
*2 |
FUEL DELIVERY PIPE (for Port Injection) |
| *3 |
FUEL DELIVERY PIPE SUB-ASSEMBLY (for Direct Injection) |
*4 |
FUEL INJECTOR SEAL (for Direct Injection) |
| *5 |
FUEL PUMP ASSEMBLY (for High Pressure) |
*6 |
NO. 1 FUEL PIPE SUB-ASSEMBLY (for High Pressure) |
| *7 |
PORT FUEL INJECTOR ASSEMBLY |
*8 |
VACUUM PUMP ASSEMBLY |
| *9 |
NO. 6 ENGINE WIRE |
*10 |
FUEL PUMP LIFTER ASSEMBLY |
| *11 |
FUEL PUMP LIFTER GUIDE |
*12 |
NO. 1 DELIVERY PIPE SPACER |
| *13 |
INJECTOR VIBRATION INSULATOR |
*14 |
NO. 3 FUEL INJECTOR BACK UP RING |
| *15 |
NO. 1 FUEL INJECTOR BACK UP RING |
*16 |
NOZZLE HOLDER CLAMP |
| *17 |
C-RING |
*18 |
O-RING |
| *19 |
NO. 2 O-RING |
*20 |
NO. 3 O-RING |
| *21 |
GASKET |
- |
- |
| *a |
Union Nut Color: Silver |
*b |
Union Nut Color: Black |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with union nut wrench |
| • |
Non-reusable part |
 |
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

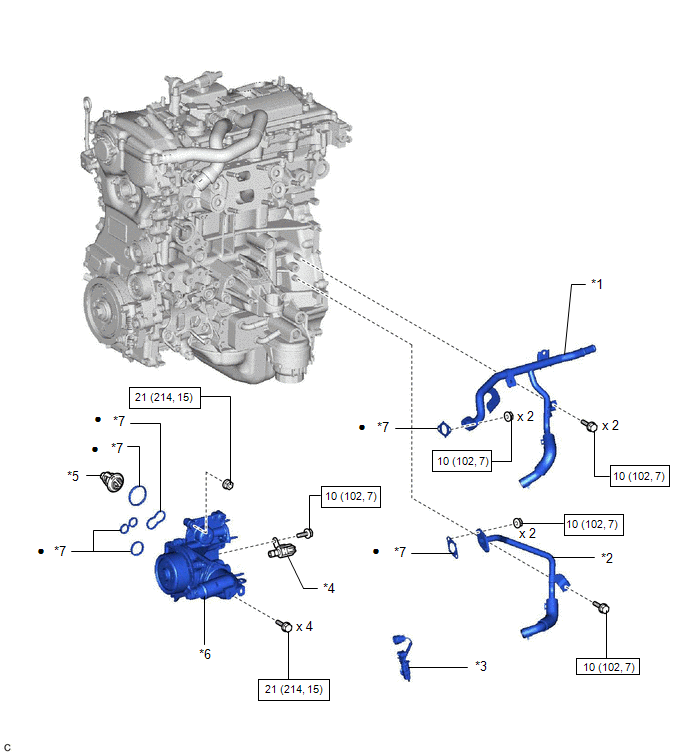

| *1 |
WATER BY-PASS PIPE ASSEMBLY |
*2 |
NO. 4 WATER BY-PASS PIPE |
| *3 |
NO. 9 ENGINE WIRE |
*4 |
OIL PRESSURE SWITCHING VALVE ASSEMBLY |
| *5 |
THERMOSTAT |
*6 |
WATER INLET HOUSING |
| *7 |
GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

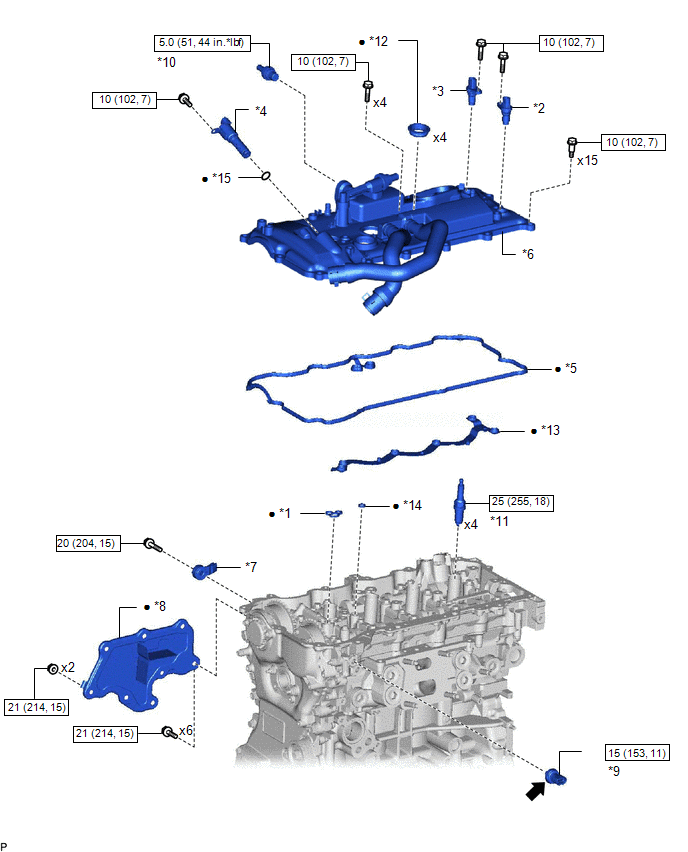

| *1 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
*2 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *3 |
CAMSHAFT POSITION SENSOR (for Intake Side) |
*4 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side) |
| *5 |
CYLINDER HEAD COVER GASKET |
*6 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
| *7 |
KNOCK CONTROL SENSOR |
*8 |
NO. 1 VENTILATION CASE |
| *9 |
OIL PRESSURE SENDER GAUGE ASSEMBLY |
*10 |
PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
| *11 |
SPARK PLUG |
*12 |
SPARK PLUG TUBE GASKET |
| *13 |
NO. 2 CYLINDER HEAD COVER GASKET |
*14 |
GASKET |
| *15 |
O-RING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

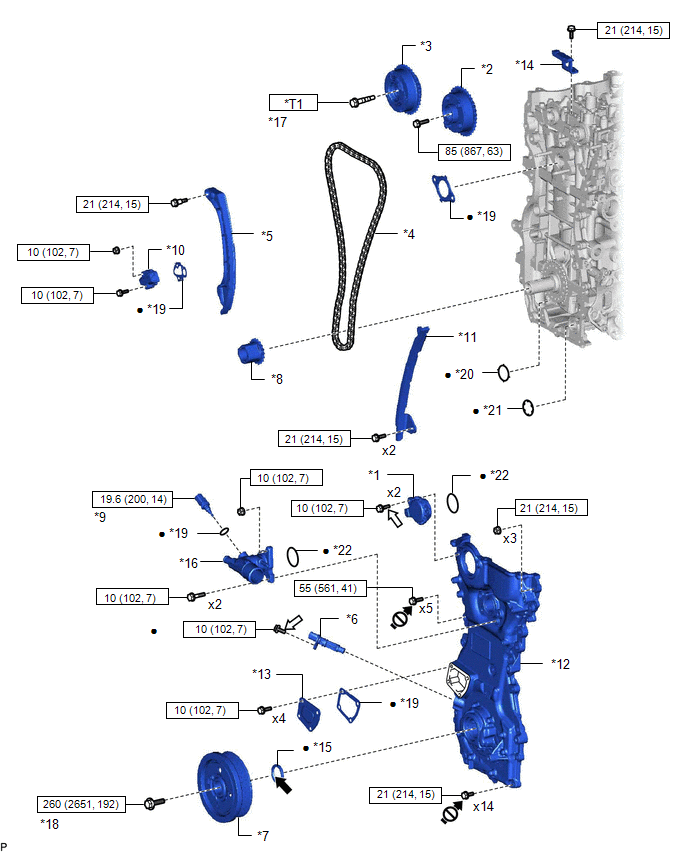

| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *3 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*4 |
CHAIN SUB-ASSEMBLY |
| *5 |
CHAIN TENSIONER SLIPPER |
*6 |
CRANK POSITION SENSOR |
| *7 |
CRANKSHAFT PULLEY ASSEMBLY |
*8 |
CRANKSHAFT TIMING GEAR OR SPROCKET |
| *9 |
E.F.I. ENGINE COOLANT TEMPERATURE SENSOR |
*10 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
| *11 |
NO. 1 CHAIN VIBRATION DAMPER |
*12 |
TIMING CHAIN COVER ASSEMBLY |
| *13 |
TIMING CHAIN COVER PLATE |
*14 |
TIMING CHAIN GUIDE |
| *15 |
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL |
*16 |
WATER OUTLET SUB-ASSEMBLY |
| *17 |
CAMSHAFT TIMING GEAR BOLT |
*18 |
CRANKSHAFT PULLEY SET BOLT |
| *19 |
GASKET |
*20 |
NO. 2 OIL STRAINER GASKET |
| *21 |
OIL PUMP GASKET |
*22 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
 |
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
|
Do not apply lubricants to the threaded parts |
* |
Precoated part |
| *T1 |
Type A:120 N.m (1224 kgf/cm, 89 ft.lbf)
Type B:95 N.m (969 kgf/cm, 70 ft.lbf) |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

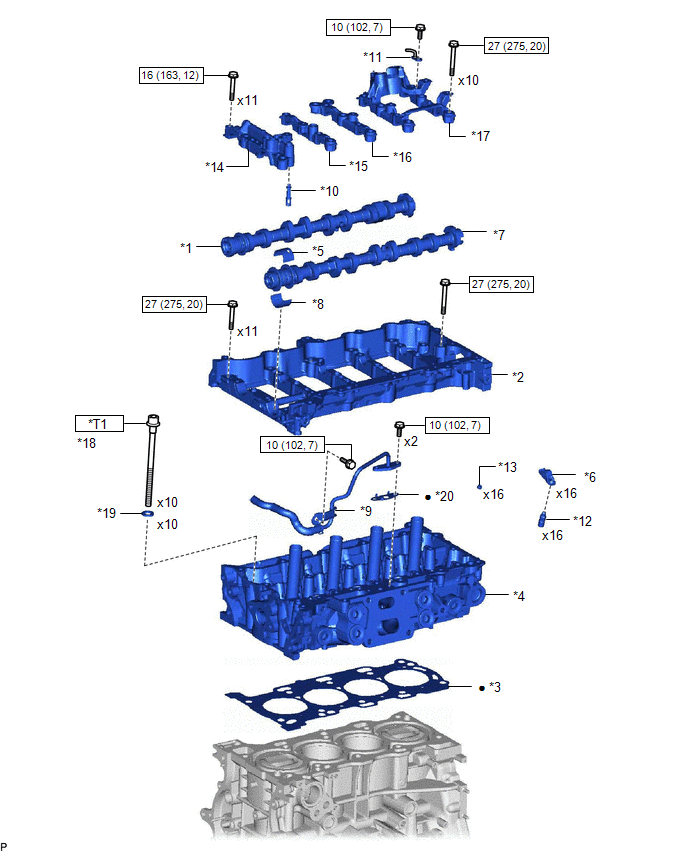

| *1 |
CAMSHAFT |
*2 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
| *3 |
CYLINDER HEAD GASKET |
*4 |
CYLINDER HEAD SUB-ASSEMBLY |
| *5 |
NO. 1 CAMSHAFT BEARING |
*6 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *7 |
NO. 2 CAMSHAFT |
*8 |
NO. 2 CAMSHAFT BEARING |
| *9 |
NO. 3 WATER BY-PASS PIPE |
*10 |
OIL CONTROL VALVE FILTER |
| *11 |
OIL PIPE SUB-ASSEMBLY |
*12 |
VALVE LASH ADJUSTER ASSEMBLY |
| *13 |
VALVE STEM CAP |
*14 |
NO. 1 CAMSHAFT BEARING CAP |
| *15 |
NO. 2 CAMSHAFT BEARING CAP |
*16 |
NO. 3 CAMSHAFT BEARING CAP |
| *17 |
NO. 4 CAMSHAFT BEARING CAP |
*18 |
CYLINDER HEAD SET BOLT |
| *19 |
CYLINDER HEAD SET PLATE WASHER |
*20 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
| * |
Precoated part |
- |
- |
| *T1 |
1st: 85 (867, 63)
2nd: Turn 90°
3rd: Turn 90° |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

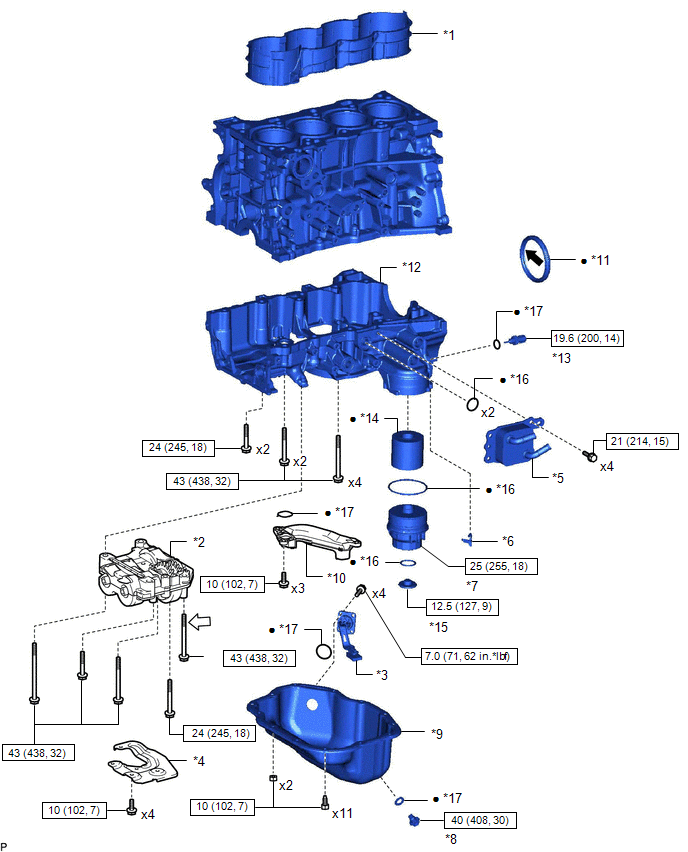

| *1 |
CYLINDER BLOCK WATER JACKET SPACER |
*2 |
ENGINE BALANCER ASSEMBLY |
| *3 |
ENGINE OIL LEVEL SENSOR |
*4 |
NO. 1 OIL PAN BAFFLE PLATE |
| *5 |
OIL COOLER ASSEMBLY |
*6 |
OIL FILTER BRACKET CLIP |
| *7 |
OIL FILTER CAP ASSEMBLY |
*8 |
OIL PAN DRAIN PLUG |
| *9 |
OIL PAN SUB-ASSEMBLY |
*10 |
OIL STRAINER SUB-ASSEMBLY |
| *11 |
REAR ENGINE OIL SEAL |
*12 |
STIFFENING CRANKCASE ASSEMBLY |
| *13 |
TEMPERATURE SENSOR |
*14 |
OIL FILTER ELEMENT |
| *15 |
OIL FILTER DRAIN PLUG |
*16 |
O-RING |
| *17 |
GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
|
Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent |
| * |
Precoated part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

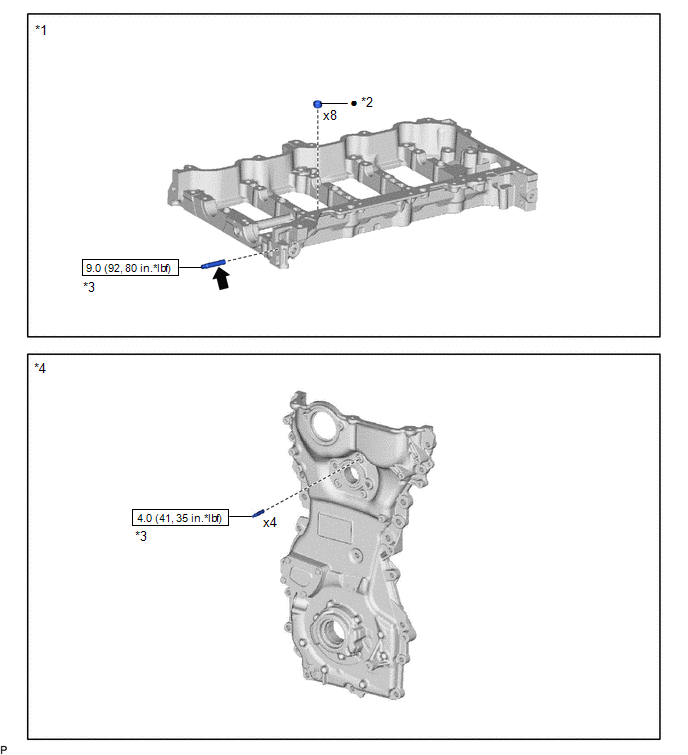

| *1 |
CAMSHAFT HOUSING SUB-ASSEMBLY |
*2 |
RING PIN |
| *3 |
STUD BOLT |
*4 |
TIMING CHAIN COVER ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

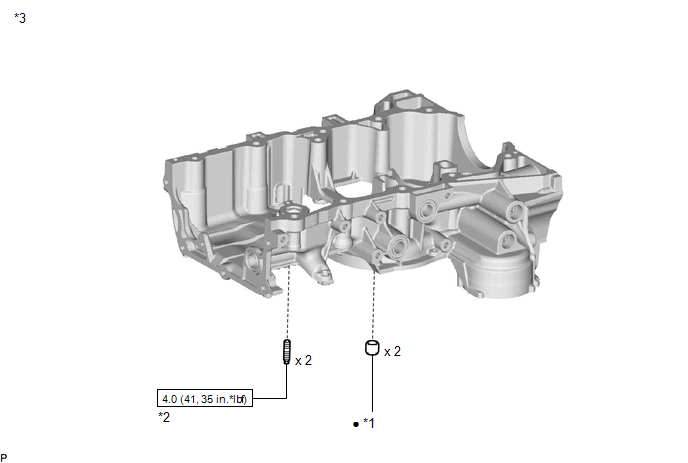

| *1 |
RING PIN |
*2 |
STUD BOLT |
| *3 |
STIFFENING CRANKCASE ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
