Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

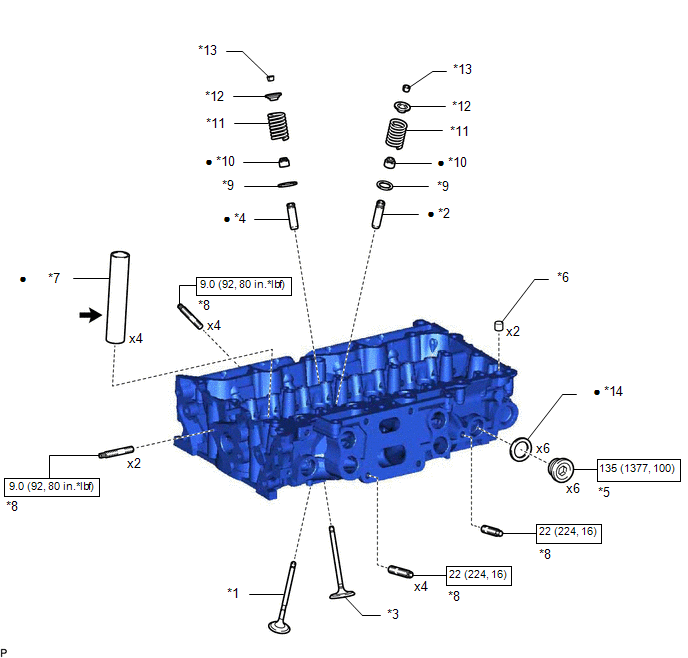

| *1 | EXHAUST VALVE | *2 | EXHAUST VALVE GUIDE BUSH |
| *3 | INTAKE VALVE | *4 | INTAKE VALVE GUIDE BUSH |
| *5 | NO. 1 STRAIGHT SCREW PLUG | *6 | RING PIN |
| *7 | SPARK PLUG TUBE | *8 | STUD BOLT |
| *9 | VALVE SPRING SEAT | *10 | VALVE STEM OIL SEAL |
| *11 | COMPRESSION SPRING | *12 | VALVE SPRING RETAINER |
| *13 | VALVE SPRING RETAINER LOCK | *14 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |
