Replacement [08/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- REPLACE RING PIN NOTE:
It is not necessary to remove the ring pin unless it is being replaced.
- Remove the 14 ring pins.
- Using a plastic-faced hammer, install 14 new ring pins.

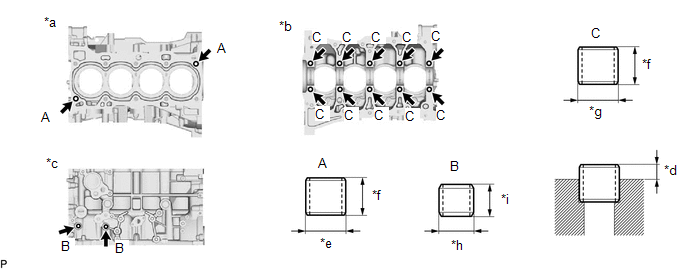

*a Upper Side *b Lower Side *c LH Side *d Protrusion Height *e 15 mm (0.591 in.) *f 14 mm (0.551 in.) *g 12 mm (0.472 in.) *h 11 mm (0.433 in.) *i 8 mm (0.315 in.) - - Standard Protrusion Height
Item Specified Condition A, C 5.0 to 7.0 mm (0.197 to 0.276 in.) B 3.0 to 5.0 mm (0.118 to 0.197 in.)
- REPLACE STRAIGHT PIN NOTE:
It is not necessary to remove the straight pin unless it is being replaced.
- Remove the 8 straight pins.
- Using a plastic-faced hammer, install 8 new straight pins.
*a Front Side *b Rear Side *c LH Side *d Lower Side *e Protrusion Height *f 6 mm (0.236 in.) *g 22 mm (0.866 in.) *h 10 mm (0.394 in.) *i 14 mm (0.551 in.) - - Standard Protrusion Height
Item Specified Condition A 11.0 to 13.0 mm (0.433 to 0.512 in.) B 5.0 to 7.0 mm (0.197 to 0.276 in.)
