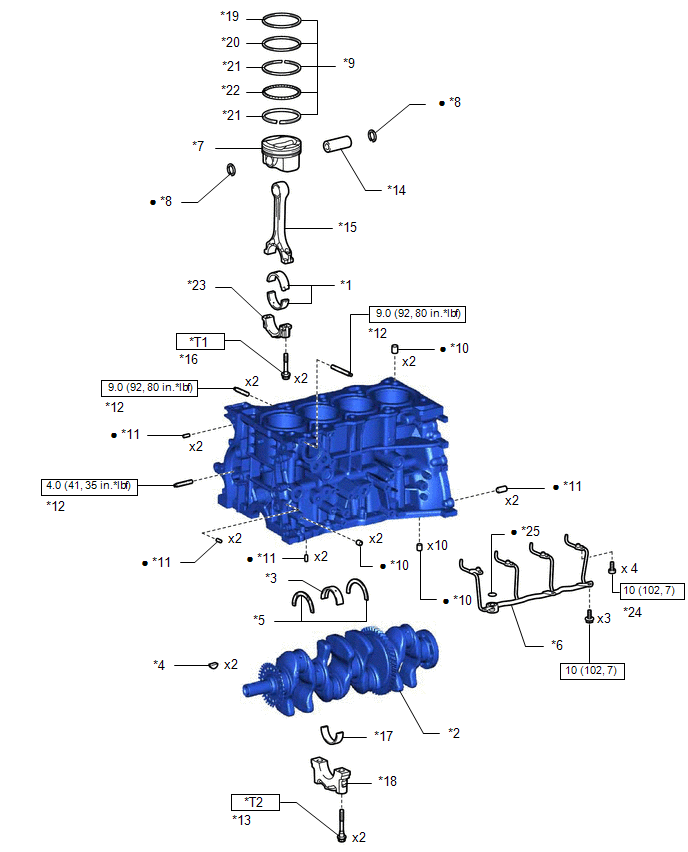

Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | CONNECTING ROD BEARING | *2 | CRANKSHAFT |
| *3 | CRANKSHAFT BEARING | *4 | CRANKSHAFT PULLEY SET KEY |
| *5 | CRANKSHAFT THRUST WASHER | *6 | OIL PIPE SUB-ASSEMBLY |
| *7 | PISTON | *8 | PISTON PIN HOLE SNAP RING |
| *9 | PISTON RING SET | *10 | RING PIN |
| *11 | STRAIGHT PIN | *12 | STUD BOLT |
| *13 | CRANKSHAFT BEARING CAP SET BOLT | *14 | PISTON PIN |
| *15 | CONNECTING ROD | *16 | CONNECTING ROD BOLT |
| *17 | NO. 2 CRANKSHAFT BEARING | *18 | CRANKSHAFT BEARING CAP |
| *19 | NO. 1 COMPRESSION RING | *20 | NO. 2 COMPRESSION RING |
| *21 | OIL RING SIDE RAIL | *22 | OIL RING EXPANDER |
| *23 | CONNECTING ROD CAP | *24 | HEXAGON SOCKET HEAD CAP BOLT |
| *25 | OIL PIPE GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| *T1 | 1st: 40 (408, 30) 2nd: Turn 90° |
*T2 | 1st: 20 (204, 15) 2nd: 61 (622, 45) 3rd: Turn 90° |
