Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE UNDER COVER
See step 11 [08/2015 - 10/2016], or see step 11 [10/2016 - 09/2020], or see step 11 [09/2020 - ]
DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 2
DISCONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
Refer to REMOVAL [08/2015 - ]

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Using SST, hold the crankshaft pulley assembly.

SST: 09213-5401509330-00021

HINT:

Part number of installation bolt for SST (crankshaft pulley holding tool): 91551-80650 (quantity: 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

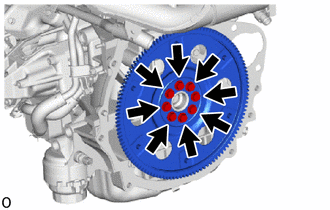

Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly and front drive plate spacer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR ENGINE OIL SEAL

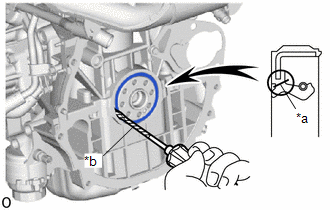

Using a knife, cut off the lip of the rear engine oil seal.

*a	Cut Position
*b	Protective Tape

Using a screwdriver, pry out the rear engine oil seal.
NOTE:
- Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.
- After removing the rear engine oil seal, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.
HINT:

Tape the screwdriver tip before use.
