Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

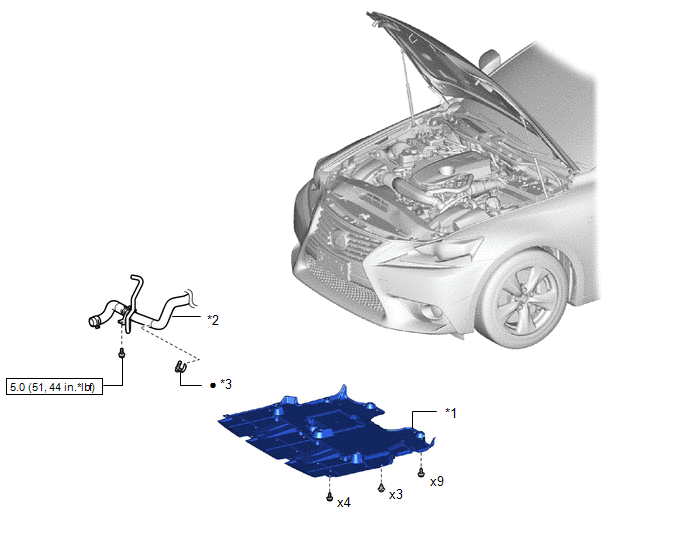

| *1 |
ENGINE UNDER COVER |
*2 |
NO. 2 RADIATOR HOSE SUB-ASSEMBLY |
| *3 |
RADIATOR HOSE CLAMP |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

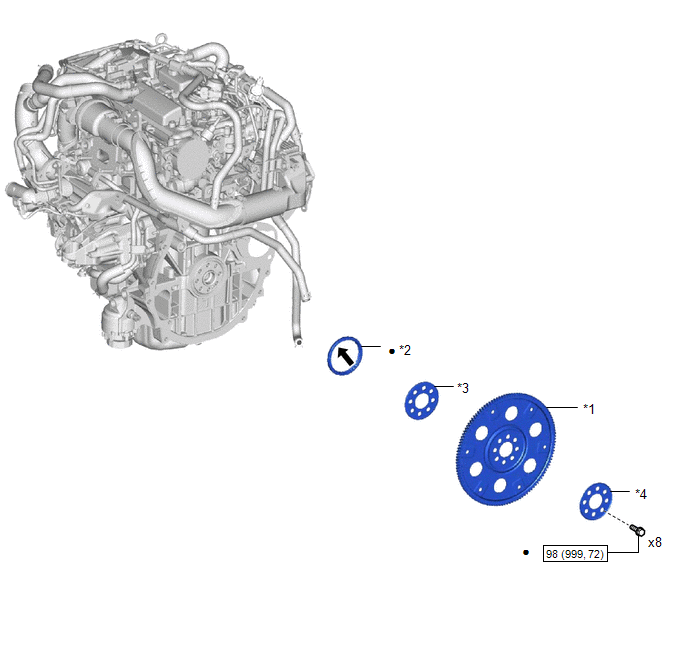

| *1 |
DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
*2 |
REAR ENGINE OIL SEAL |
| *3 |
FRONT DRIVE PLATE SPACER |
*4 |
REAR DRIVE PLATE SPACER |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
MP grease |
- |
- |
