Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

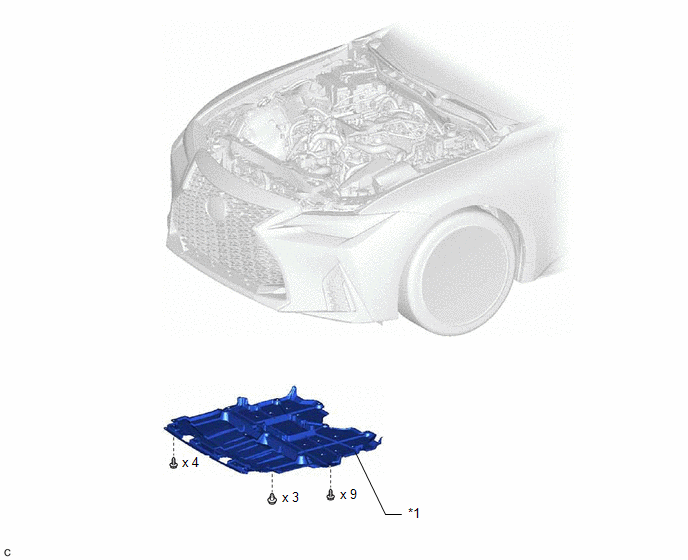

| *1 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

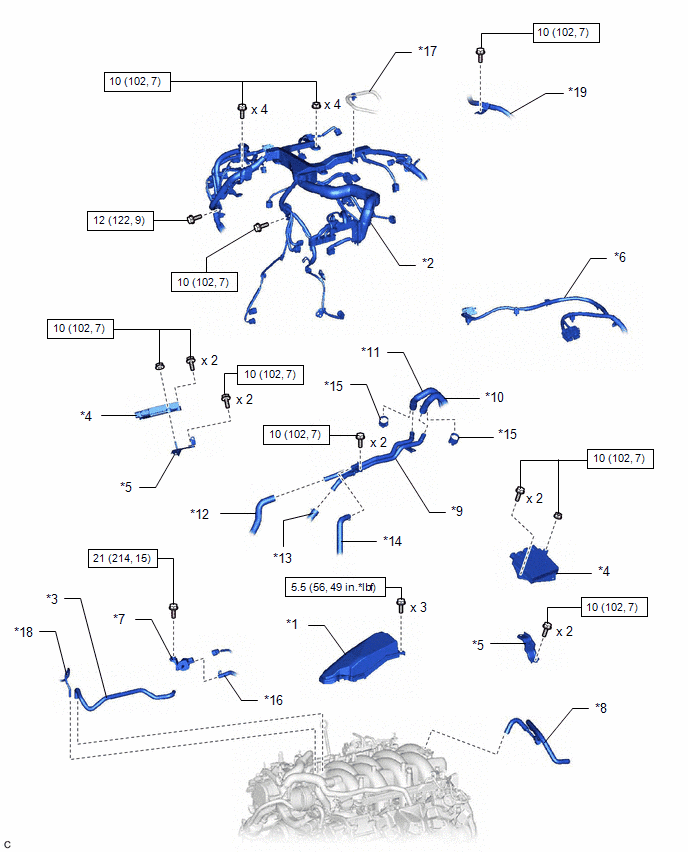

| *1 |
ENGINE ROOM ECU COVER |
*2 |
ENGINE WIRE |
| *3 |
FUEL VAPOR FEED HOSE |
*4 |
INJECTOR DRIVER |
| *5 |
INJECTOR DRIVER BRACKET |
*6 |
NO. 5 ENGINE WIRE |
| *7 |
PURGE VALVE (PURGE VSV) |
*8 |
UNION TO CHECK VALVE HOSE |
| *9 |
WATER BY-PASS PIPE SUB-ASSEMBLY |
*10 |
HEATER WATER INLET HOSE |
| *11 |
HEATER WATER OUTLET HOSE |
*12 |
NO. 3 WATER BY-PASS HOSE |
| *13 |
WATER BY-PASS HOSE |
*14 |
NO. 5 WATER BY-PASS HOSE |
| *15 |
WATER HOSE SET |
*16 |
NO. 1 FUEL VAPOR FEED HOSE |
| *17 |
FUEL TUBE SUB-ASSEMBLY |
*18 |
VACUUM HOSE SUB-ASSEMBLY |
| *19 |
WIRE HARNESS BRACKET |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

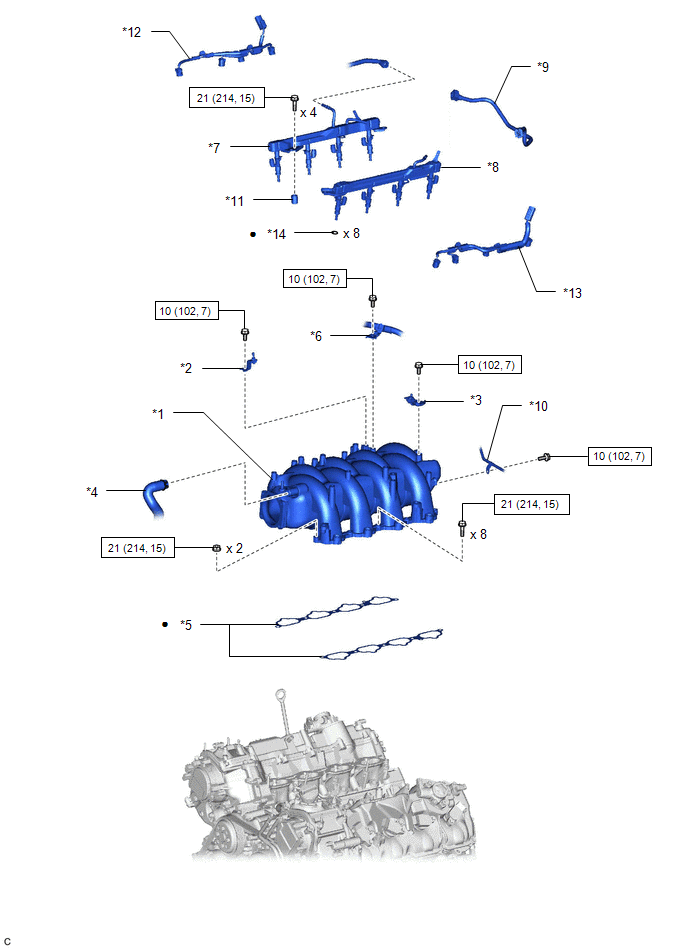

| *1 |
INTAKE AIR SURGE TANK ASSEMBLY |
*2 |
NO. 2 V-BANK COVER BRACKET SUB-ASSEMBLY |
| *3 |
V-BANK COVER BRACKET SUB-ASSEMBLY |
*4 |
VENTILATION HOSE |
| *5 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
*6 |
WIRE HARNESS BRACKET |
| *7 |
FUEL DELIVERY PIPE SUB-ASSEMBLY |
*8 |
NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY |
| *9 |
FUEL TUBE SUB-ASSEMBLY |
*10 |
NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *11 |
NO. 1 DELIVERY PIPE SPACER |
*12 |
NO. 6 ENGINE WIRE |
| *13 |
NO. 7 ENGINE WIRE |
*14 |
INJECTOR VIBRATION INSULATOR |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
