Components [11/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

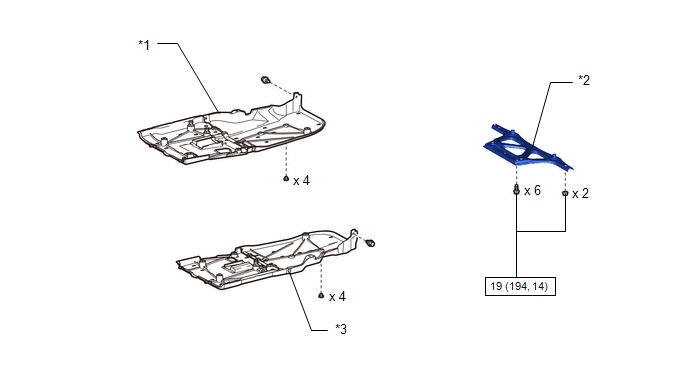

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT CENTER FLOOR COVER LH	*2	FRONT CENTER FLOOR BRACE
*3	FRONT CENTER FLOOR COVER RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

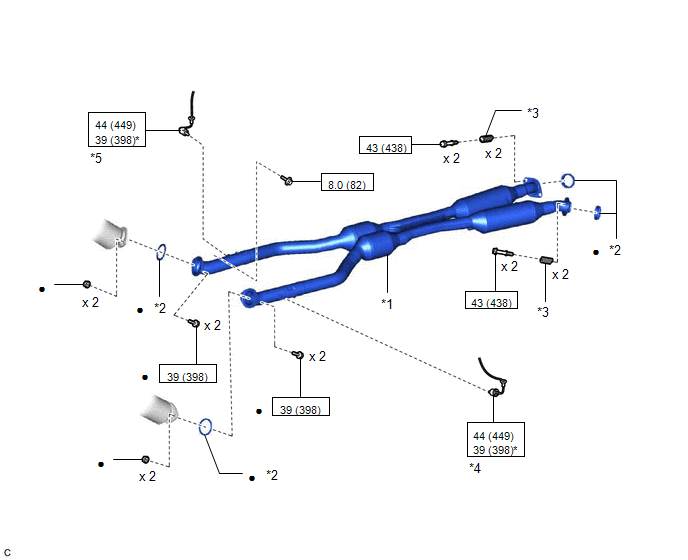

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	EXHAUST PIPE GASKET
*3	COMPRESSION SPRING	*4	HEATED OXYGEN SENSOR (for Bank 1)
*5	HEATED OXYGEN SENSOR (for Bank 2)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-

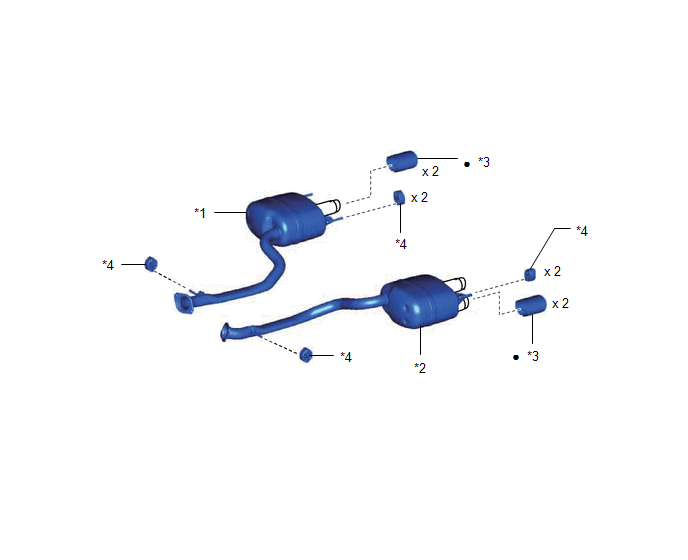

Fig 3: Exhaust Pipe Replacement Components (3 Of 3)

*1	TAIL EXHAUST PIPE ASSEMBLY	*2	TAIL EXHAUST PIPE LH
*3	TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY	*4	EXHAUST PIPE SUPPORT
•	Non-reusable part	-	-
