Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

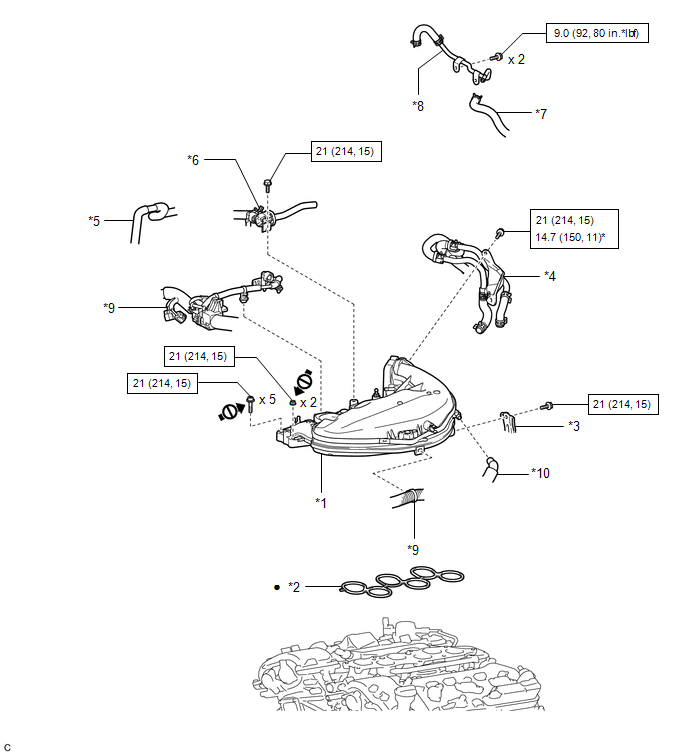

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| |
|
|
|
| *1 |
INTAKE AIR SURGE TANK ASSEMBLY |
*2 |
AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
| *3 |
NO. 2 SURGE TANK STAY |
*4 |
NO. 2 WATER BY-PASS PIPE |
| *5 |
NO. 2 WATER BY-PASS HOSE |
*6 |
PURGE VALVE (PURGE VSV) |
| *7 |
VACUUM HOSE ASSEMBLY |
*8 |
NO. 1 HOSE TO HOSE TUBE |
| *9 |
WIRE HARNESS |
*10 |
VENTILATION HOSE ASSEMBLY |
| |
|
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Do not apply lubricants (to the threaded parts) |
- |
- |

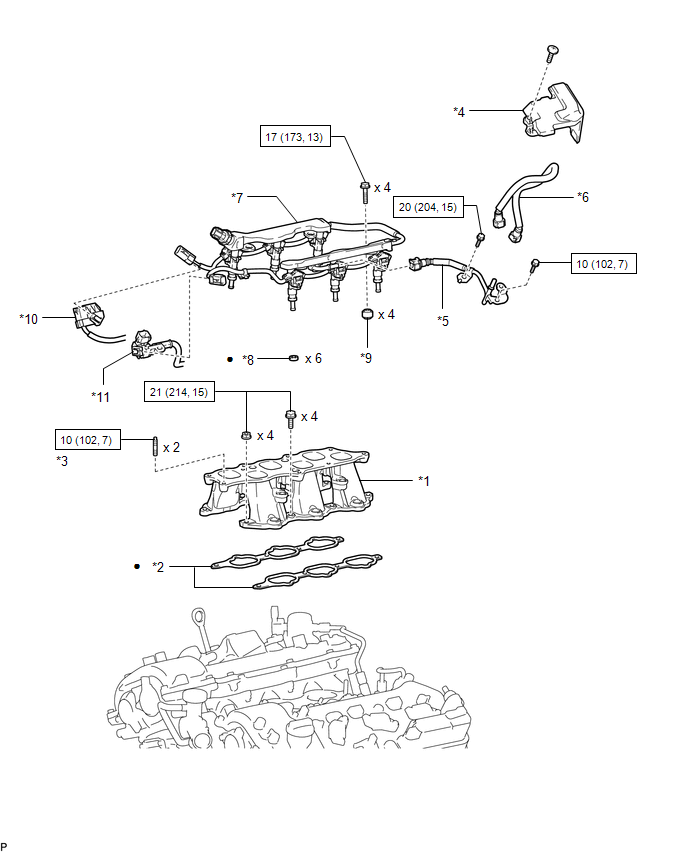

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
INTAKE MANIFOLD |
*2 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *3 |
STUD BOLT |
*4 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *5 |
NO. 1 FUEL TUBE SUB-ASSEMBLY |
*6 |
NO. 2 FUEL TUBE SUB-ASSEMBLY |
| *7 |
FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY |
*8 |
INJECTOR VIBRATION INSULATOR |
| *9 |
NO. 1 DELIVERY PIPE SPACER |
*10 |
NO. 6 ENGINE WIRE |
| *11 |
NO. 7 ENGINE WIRE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
