Removal [09/2020 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY (for Full Cover Type)
Refer to PROCEDURE - Step 2 [09/2020 - 11/2021]
, or refer to PROCEDURE - Step 2 [11/2021 - ]
- REMOVE REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY (for Full Cover Type)
Refer to PROCEDURE - Step 3 [09/2020 - 11/2021]
, or refer to PROCEDURE - Step 3 [11/2021 - ]

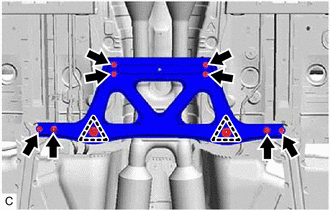

- REMOVE FRONT CENTER FLOOR BRACE
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 6 bolts and 2 nuts.
- Disengage the 2 clips to remove the front center floor brace from the vehicle body.
- DISCONNECT HEATED OXYGEN SENSOR
- for Bank 1:

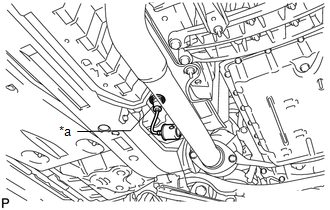

- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

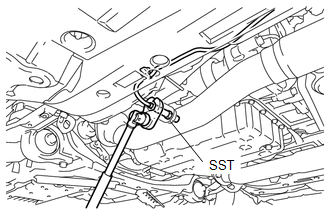

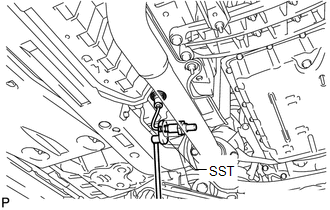

- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If a heated oxygen sensor has been struck or dropped, replace it.
- for Bank 2 (for 2WD):

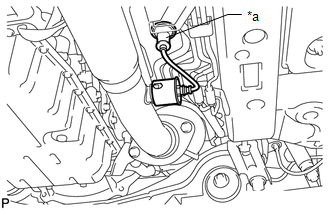

- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

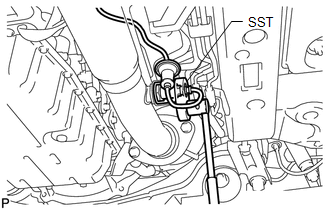

- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If a heated oxygen sensor has been struck or dropped, replace it.
- for Bank 2 (for AWD):

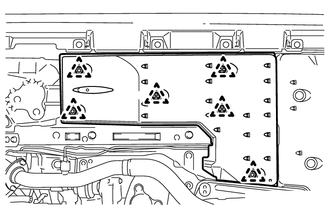

- Disengage the 6 clips and remove the front floor cover LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

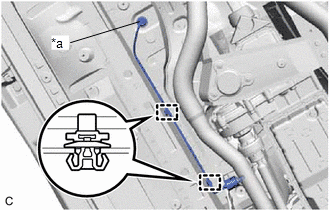

- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 2 clamps.
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If a heated oxygen sensor has been struck or dropped, replace it.
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

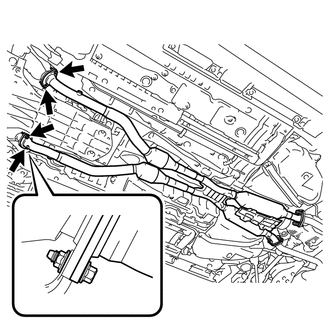

- Remove the 4 bolts and 4 nuts to disconnect the front exhaust pipe assembly (TWC: rear catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

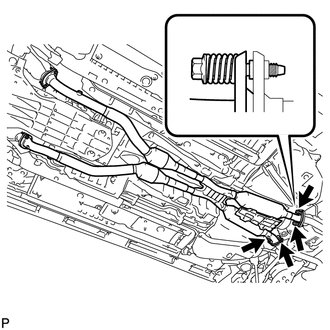

- Remove the 4 bolts, 4 compression springs and front exhaust pipe assembly (TWC: Rear Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 4 gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).
- DISCONNECT TAIL EXHAUST PIPE ASSEMBLY

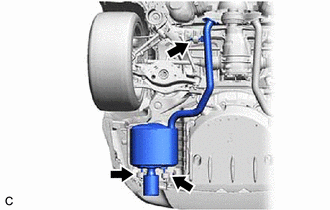

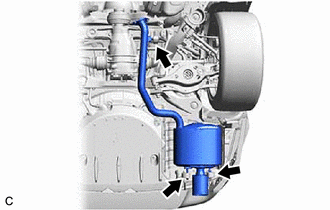

- Disconnect the tail exhaust pipe assembly from the 3 exhaust pipe supports.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assembly.
- DISCONNECT TAIL EXHAUST PIPE LH
- Disconnect the tail exhaust pipe LH from the 3 exhaust pipe supports.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assembly.
- REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY
HINT:
- Perform this procedure only when replacement of the tail exhaust pipe baffle sub-assembly is necessary.
- If the tail exhaust pipe baffle sub-assembly is removed, replace it with a new one.

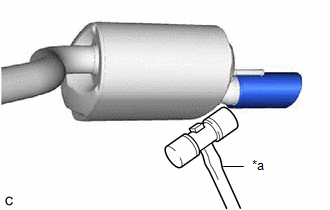

- Using a plastic hammer, remove the 2 tail exhaust pipe baffle sub-assemblies from the tail exhaust pipe assembly and tail exhaust pipe LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
