Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

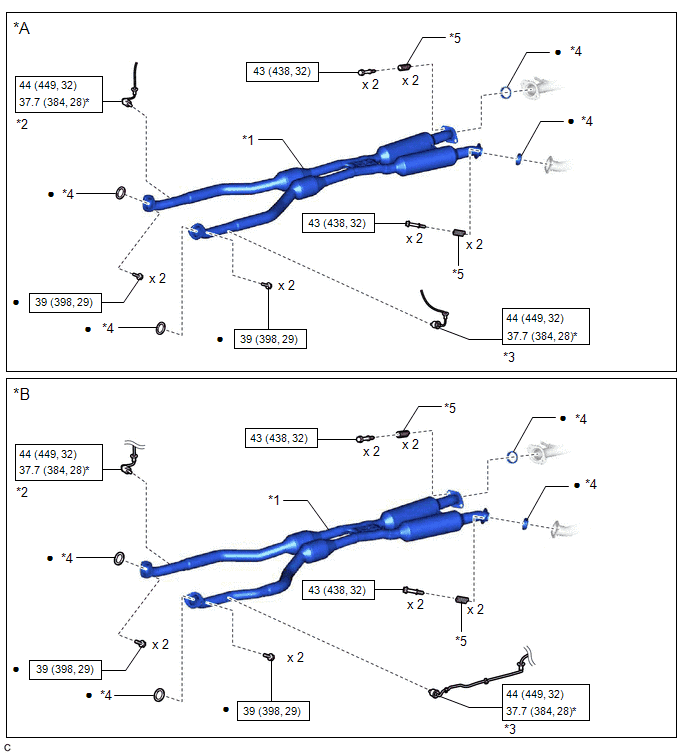

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for AWD |
*B |
for 2WD |
| *C |
for Full Cover Type |
*D |
w/ Front Floor Cover LH |
| *1 |
FRONT SUSPENSION MEMBER BRACE |
*2 |
FRONT FLOOR COVER LH |
| *3 |
FRONT CENTER FLOOR BRACE |
*4 |
FRONT PROPELLER SHAFT ASSEMBLY |
| *5 |
REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY |
*6 |
REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY |
| *7 |
CONSTANT VELOCITY UNIVERSAL JOINT |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
 |
Do not apply lubricants (to the threaded parts) |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for 2WD |
*B |
for AWD |
| *1 |
FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
*2 |
HEATED OXYGEN SENSOR (for Bank 1) |
| *3 |
HEATED OXYGEN SENSOR (for Bank 1) |
*4 |
GASKET |
| *5 |
COMPRESSION SPRING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

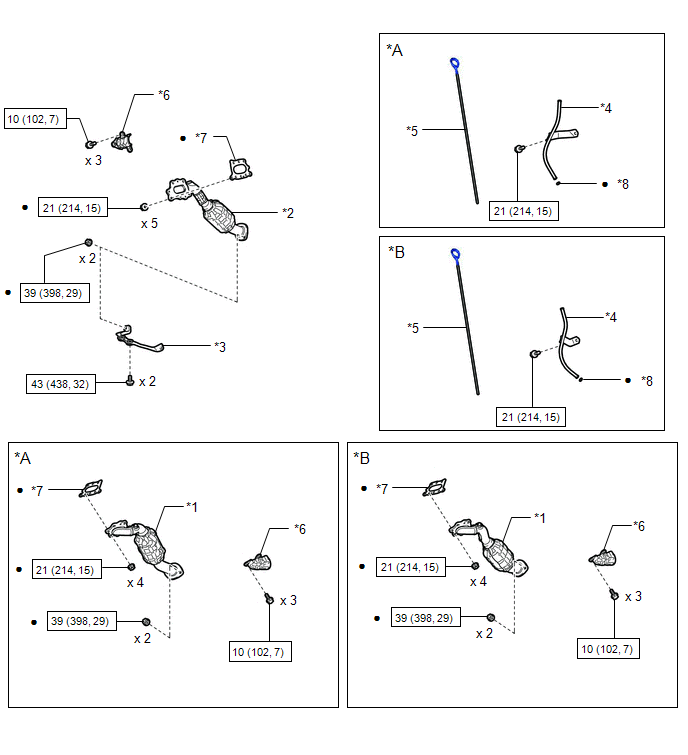

| *A |
for AWD |
*B |
for 2WD |
| *1 |
EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst) |
*2 |
EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst) |
| *3 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY |
*4 |
NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE |
| *5 |
ENGINE OIL LEVEL DIPSTICK |
*6 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
| *7 |
GASKET |
*8 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
