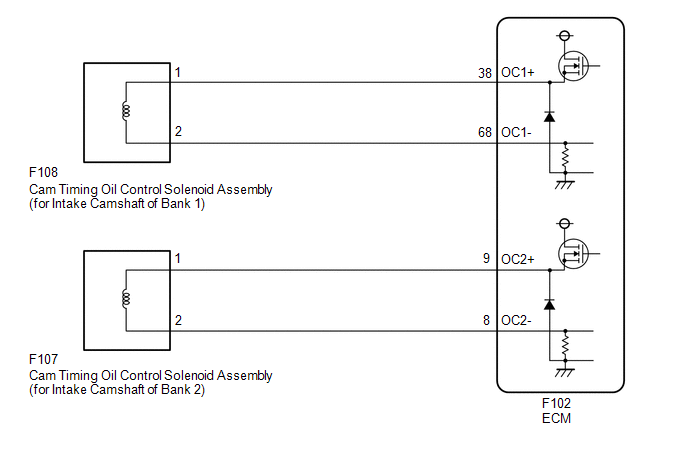

DTC P0010-13: A Camshaft Position Actuator Bank 1 Circuit Open; DTC P0020-13: Camshaft Position "A" Actuator Bank 2 Circuit Open [10/2017 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
