DTC P0722: Output Speed Sensor Circuit No Signal [04/2013 - 08/2015]: Procedure

1. Check the transmission revolution sensor (SP2) installation.

   OK

   The installation bolt is tightened properly and there is no clearance between the sensor and transmission case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	OK
   *b	NG

   Result

   Proceed to
   OK
   NG

Result:

NG

SECURELY INSTALL TRANSMISSION REVOLUTION SENSOR (SP2) OR REPLACE TRANSMISSION REVOLUTION SENSOR (SP2). Refer to  INSTALLATION [04/2013 - 08/2015]

Result:

OK

See step  2

1. Disconnect the F55 transmission revolution sensor (SP2) connector from the transmission.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Transmission Revolution Sensor (SP2))

2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	560 to 680 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE TRANSMISSION REVOLUTION SENSOR (SP2). Refer to  COMPONENTS [04/2013 - 08/2015]

Result:

OK

See step  3

1. Connect the transmission revolution sensor (SP2) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

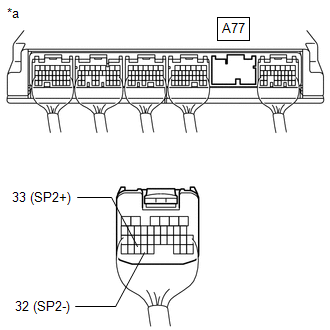

   *a	Rear view of wire harness connector (to ECM)

2. Disconnect the A77 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A77-33 (SP2+) - A77-32 (SP2-)	20°C (68°F)	560 to 680 Ω

4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for short)

   Tester Connection	Condition	Specified Condition
   A77-33 (SP2+) - Body ground	Always	10 kΩ or higher
   A77-32 (SP2-) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  COMPONENTS [04/2013 - 08/2015]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
