Precaution [08/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

MAINTENANCE PRECAUTION

If the turbocharger sub-assembly is found to be defective, it must be replaced. Make sure to identify the cause of the problem including the conditions under which the turbocharger sub-assembly was used. Repair or replace the following as necessary:
1. Engine oil (level and quality)
2. Oil lines leading to the turbocharger sub-assembly

Be careful when removing and reinstalling the turbocharger sub-assembly. Do not drop, strike, or grasp easily-deformed components.

NOTE:

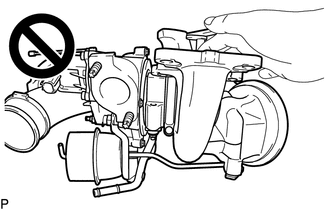

Do not hold the turbocharger sub-assembly by the waste gate valve actuator rod.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

When storing the turbocharger sub-assembly, do not place it with the waste gate valve actuator facing down.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Make sure foreign matter does not enter the intake and exhaust ports or oil passage.

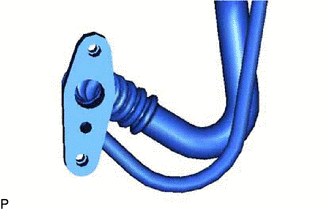

If replacing the turbocharger sub-assembly, check for deposits in the turbo oil inlet pipe sub-assembly. If necessary, replace the turbo oil inlet pipe sub-assembly.

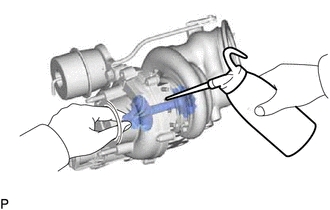

If replacing the turbocharger sub-assembly, add 20 cc (1.2 cu. in.) of new engine oil to the turbocharger oil inlet hole and turn the turbine wheel by hand to lubricate the bearings.
