Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
AIR CLEANER HOSE ASSEMBLY |
| *3 |
NO. 1 VENTILATION HOSE |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

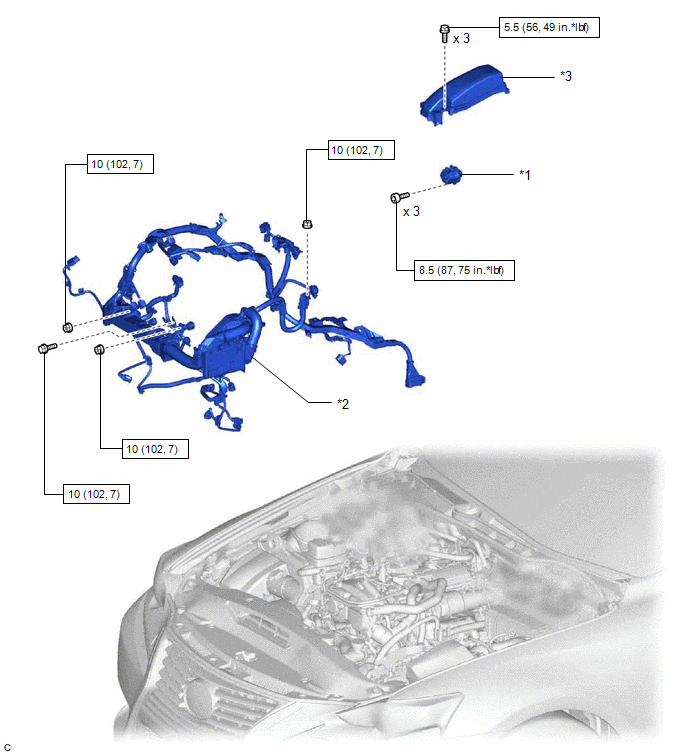

| *1 |
INTAKE AIR CONTROL VALVE (AIR BY-PASS VALVE ASSEMBLY) |
*2 |
ENGINE WIRE |
| *3 |
ENGINE ROOM ECU COVER |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
