Removal [09/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY (for Full Cover Type)

    Refer to PROCEDURE - Step 2 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - ]

  2. REMOVE REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY (for Full Cover Type)

    Refer to PROCEDURE - Step 3 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - ]

  3. REMOVE FRONT CENTER FLOOR BRACE

    Refer to PROCEDURE - Step 6 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - ]

  4. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts and 2 nuts to disconnect the front exhaust pipe assembly from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).

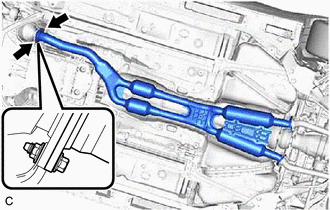

      GTY965206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts, 4 compression springs and front exhaust pipe assembly from the tail exhaust pipe assembly and tail exhaust pipe LH.

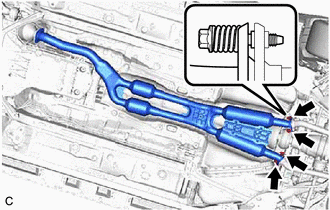

      GTY965207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 exhaust pipe gaskets from the front exhaust pipe assembly and exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
  5. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    1. Remove the tail exhaust pipe assembly from the 3 exhaust pipe supports.

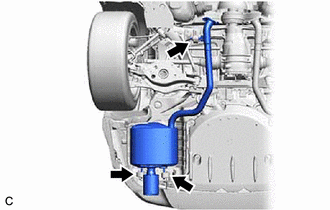

      GTY965162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe assembly.

  6. REMOVE TAIL EXHAUST PIPE LH
    1. Remove the tail exhaust pipe LH from the 3 exhaust pipe supports.

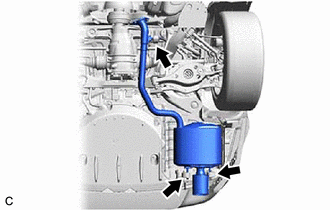

      GTY965164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assembly.

  7. REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

    HINT:

    • Perform this procedure only when replacement of the tail exhaust pipe baffle sub-assembly is necessary.
    • If the tail exhaust pipe baffle sub-assembly is removed, replace it with a new one.
    1. Using a plastic hammer, remove the 2 tail exhaust pipe baffle sub-assemblies from the tail exhaust pipe assembly and tail exhaust pipe LH.

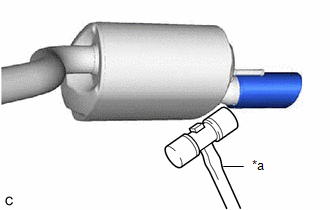

      GTY965577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plastic Hammer
