Components [10/2016 - 09/2020]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for Full Cover Type |
- |
- |
| *1 |
REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY |
*2 |
FRONT CENTER FLOOR BRACE |
| *3 |
REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

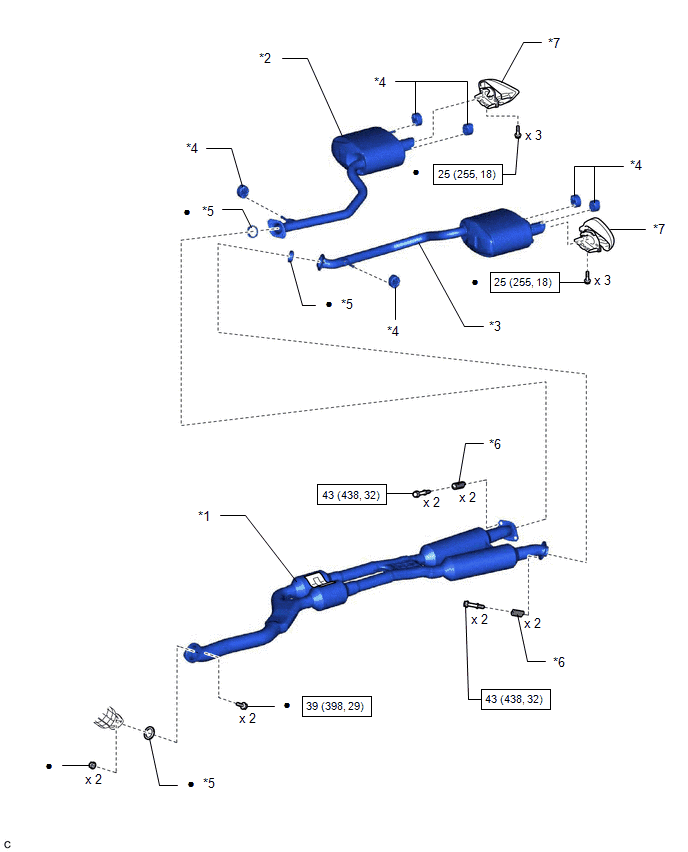

| *1 |
FRONT EXHAUST PIPE ASSEMBLY |
*2 |
TAIL EXHAUST PIPE ASSEMBLY |
| *3 |
TAIL EXHAUST PIPE LH |
*4 |
EXHAUST PIPE SUPPORT |
| *5 |
EXHAUST PIPE GASKET |
*6 |
COMPRESSION SPRING |
| *7 |
TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
