Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]

REMOVE PURGE VALVE (PURGE VSV)

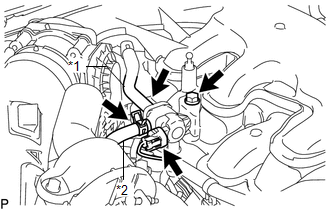

Slide the clip and disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).

*1	No. 1 Fuel Vapor Feed Hose
*2	No. 2 Fuel Vapor Feed Hose

Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
Disconnect the purge valve (purge VSV) connector.
Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.
