- INSTALL PURGE VALVE (PURGE VSV)
- Install the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.

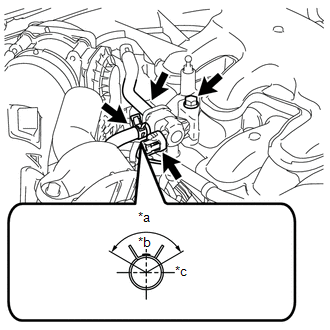

*a 120° *b Up *c Front Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
- Connect the purge valve (purge VSV) connector.
- Connect the No. 2 fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.
HINT:
Engage the clip within the area shown in the illustration.
- Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV).
- Install the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.
- INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 104 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 104 [09/2020 - ]
