Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [10/2017 - ]

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  3. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

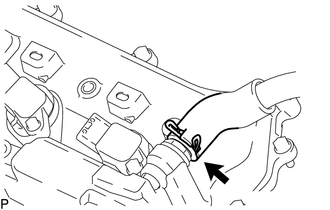

    1. Slide the clip and disconnect the ventilation hose assembly from the PCV valve (ventilation valve sub-assembly).
      GTY653809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

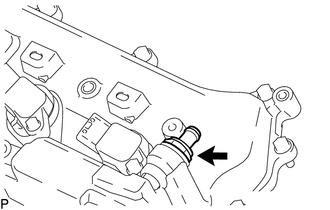

    2. Using a 22 mm deep socket wrench, remove the PCV valve (ventilation valve sub-assembly) from the cylinder head cover sub-assembly.
      GTY653810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
