Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE NO. 1 OIL PIPE

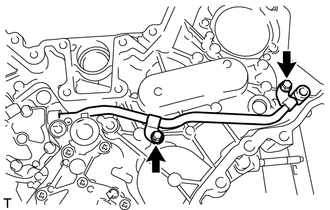

    1. Remove the 2 bolts and No. 1 oil pipe from the scavenging pump assembly and timing chain cover assembly.
      GTY502469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pipe seal and O-ring from the No. 1 oil pipe.
  3. REMOVE NO. 2 OIL PIPE

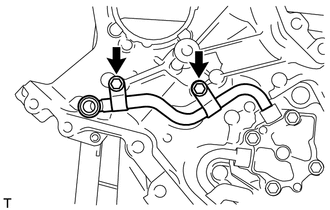

    1. Remove the 2 bolts and No. 2 oil pipe from the scavenging pump assembly and timing chain cover assembly.
      GTY502468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pipe seal and O-ring from the No. 2 oil pipe.
  4. REMOVE NO. 3 OIL PIPE

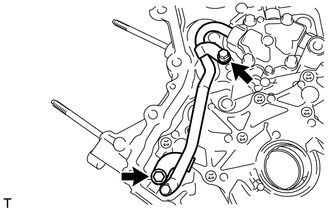

    1. Remove the 2 bolts and No. 3 oil pipe from the scavenging pump assembly and timing chain cover assembly.
      GTY518593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 3 oil pipe.
  5. REMOVE SCAVENGING PUMP ASSEMBLY

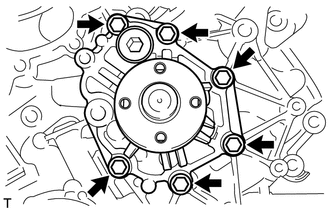

    1. Remove the 6 bolts, scavenging pump assembly and gasket.
      GTY148816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
