INSTALL SCAVENGING PUMP ASSEMBLY
1. Temporarily install the scavenging pump assembly and a new gasket with the 6 bolts.
2. Using several steps, uniformly tighten the 6 bolts in the order shown in the illustration.

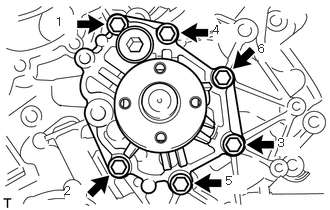

  Fig 1: Scavenging Pump Assembly Bolts Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
INSTALL NO. 3 OIL PIPE
1. Install a new O-ring to the No. 3 oil pipe.
2. Install the No. 3 oil pipe to the scavenging pump assembly and align the bolt holes.
  NOTE:
  - Do not damage the O-ring.
  - Do not rotate the No. 3 oil pipe when installing it to the scavenging pump assembly.
3. Install the 2 bolts.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
INSTALL NO. 2 OIL PIPE
1. Install a new O-ring and oil pipe seal to the No. 2 oil pipe.
2. Install the No. 2 oil pipe to the scavenging pump assembly and align the bolt holes.
  NOTE:
  - Do not damage the O-ring.
  - Do not rotate the No. 2 oil pipe when installing it to the scavenging pump assembly.
3. Install the 2 bolts.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
INSTALL NO. 1 OIL PIPE
1. Install a new O-ring and oil pipe seal to the No. 1 oil pipe.
2. Install the No. 1 oil pipe to the scavenging pump assembly and align the bolt holes.
  NOTE:
  - Do not damage the O-ring.
  - Do not rotate the No. 1 oil pipe when installing it to the scavenging pump assembly.
3. Install the 2 bolts.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
INSTALL TIMING CHAIN COVER ASSEMBLY
Refer to INSTALLATION [11/2021 - ]
