Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

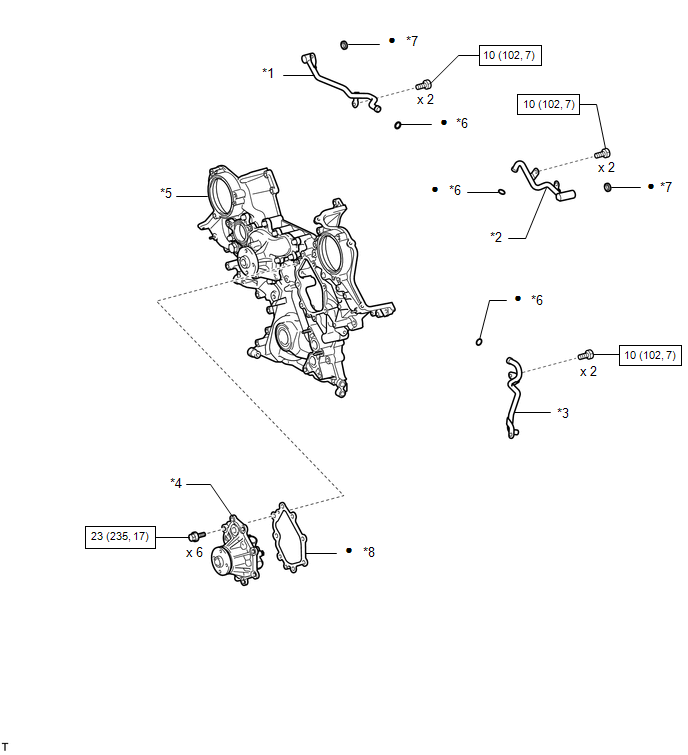

| *1 |
NO. 1 OIL PIPE |
*2 |
NO. 2 OIL PIPE |
| *3 |
NO. 3 OIL PIPE |
*4 |
SCAVENGING PUMP ASSEMBLY |
| *5 |
TIMING CHAIN COVER ASSEMBLY |
*6 |
O-RING |
| *7 |
OIL PIPE SEAL |
*8 |
GASKET |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
