Reassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OIL PUMP RELIEF VALVE
    1. Coat the oil pump relief valve with engine oil.
    2. Insert the oil pump relief valve and oil pump relief valve spring into the oil pump cover hole.
    3. Using a 27 mm socket wrench, install the oil pump relief valve plug to the oil pump cover.

      Torque: 53 N.m (540 kgf/cm, 39 ft.lbf)

  2. INSTALL OIL PUMP ROTOR SET
    1. Apply engine oil to the oil pump rotor set.
    2. Install the oil pump rotor set to the timing chain cover assembly with the marks facing up. Check that the oil pump rotor set rotates smoothly.
      GTY508554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark
  3. INSTALL OIL PUMP COVER

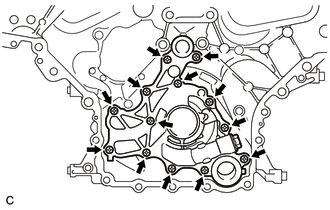

    1. Install the oil pump cover to the timing chain cover assembly with the 13 bolts.
      GTY518393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10.3 N.m (105 kgf/cm, 8 ft.lbf)
