Disassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE OIL PUMP COVER
    1. Remove the 13 bolts and oil pump cover from the timing chain cover assembly.
      GTY518393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE OIL PUMP ROTOR SET
    1. Remove the oil pump rotor set from the timing chain cover assembly.

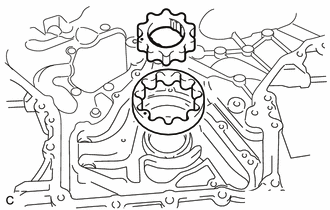

      GTY142068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE OIL PUMP RELIEF VALVE
    1. Using a 27 mm socket wrench, remove the oil pump relief valve plug.
      GTY497333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pump relief valve spring and oil pump relief valve.
