Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  2. REMOVE ENGINE OIL TEMPERATURE SENSOR

    Refer to REMOVAL [11/2021 - ]

  3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch assembly connector.

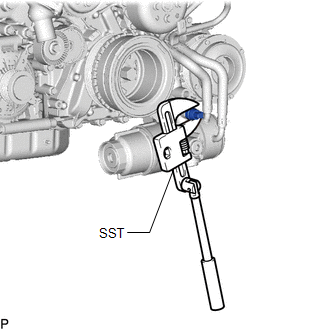

    2. Using SST, remove the engine oil pressure switch assembly.
      GTY1084050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09922-10010
