Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE UNDER COVER
Refer to PROCEDURE - Step 10
REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
REMOVE FRONT LOWER SUSPENSION MEMBER PROTECTOR
Refer to PROCEDURE - Step 14
REMOVE NO. 2 ENGINE UNDER COVER
Refer to PROCEDURE - Step 15
DRAIN ENGINE OIL
See step 1

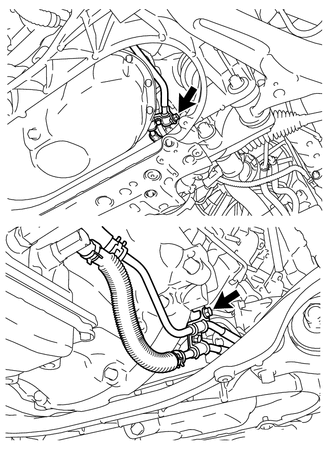

SEPARATE OIL COOLER TUBE

Remove the 2 bolts and separate the oil cooler tube.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

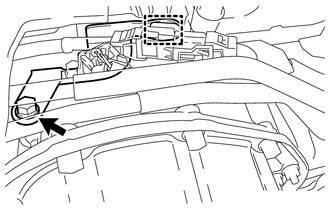

REMOVE CRANK POSITION SENSOR BRACKET

Disengage the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt and crank position sensor bracket.

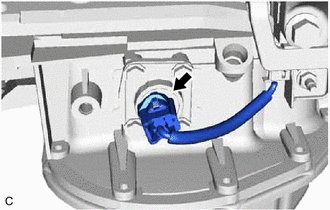

REMOVE ENGINE OIL LEVEL SENSOR

Disconnect the engine oil level sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

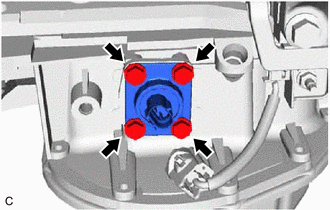

Remove the 4 bolts.

Rotate the engine oil level sensor 180° counterclockwise and remove it from the oil pan sub-assembly.

Cut off the gasket as shown in the illustration.

*a	Cutting Position
*b	Supply Part

Remove the gasket from the engine oil level sensor.
HINT:

After cutting off the portions of the gasket shown in the illustration, remove only the outer part of the gasket.
