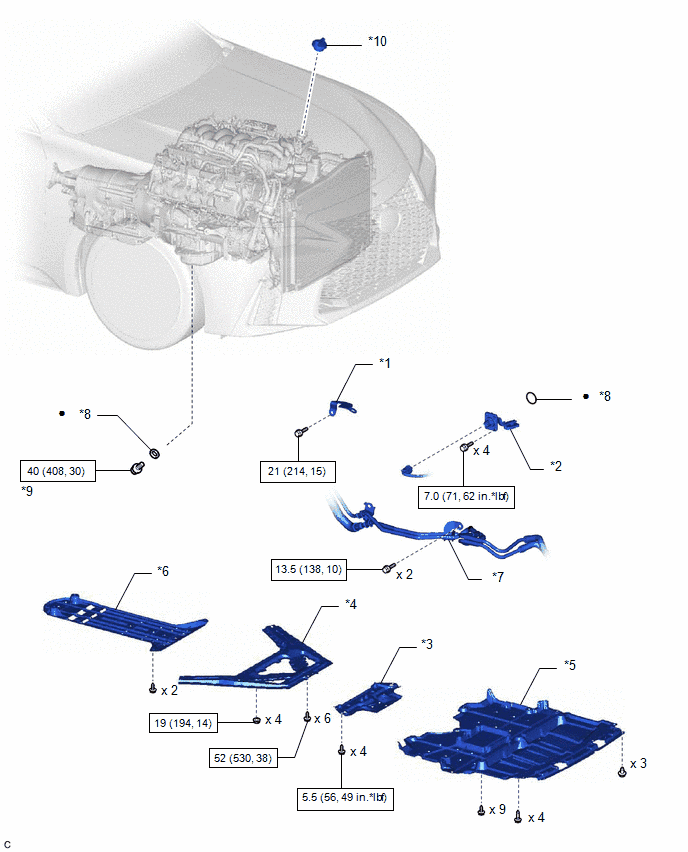

Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | CRANK POSITION SENSOR BRACKET | *2 | ENGINE OIL LEVEL SENSOR |
| *3 | FRONT LOWER SUSPENSION MEMBER PROTECTOR | *4 | FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY |
| *5 | ENGINE UNDER COVER | *6 | NO. 2 ENGINE UNDER COVER |
| *7 | OIL COOLER TUBE | *8 | GASKET |
| *9 | OIL PAN DRAIN PLUG | *10 | OIL FILLER CAP SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
