Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  2. REMOVE ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  4. DRAIN ENGINE OIL

    See step  1

  5. REMOVE OIL COOLER ASSEMBLY

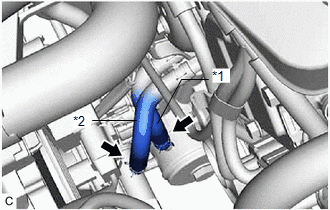

    1. Slide the 2 clips and disconnect the No. 2 water by-pass hose and No. 8 water by-pass hose.
      GTY1084480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Water By-pass Hose
      *2 No. 8 Water By-pass Hose

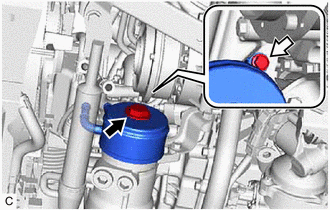

    2. Remove the oil cooler union bolt and gasket.
      GTY1084451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Oil Cooler Union Bolt
      Bolt
    3. Remove the bolt and oil cooler assembly.

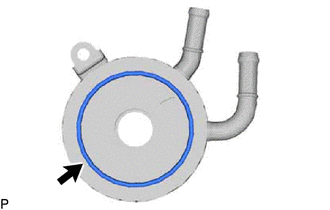

    4. Remove the O-ring from the oil cooler assembly.
      GTY831718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
