Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OIL COOLER ASSEMBLY
    1. Clean the installation surfaces of the oil cooler assembly.
    2. Install a new O-ring to the oil cooler assembly.
    3. Apply a small amount of engine oil to the oil cooler union bolt.
    4. Install the oil cooler assembly and a new gasket with the oil cooler union bolt and bolt.

      Oil Cooler Union Bolt

      Torque: 59 N.m (602 kgf/cm, 44 ft.lbf)

      Bolt

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

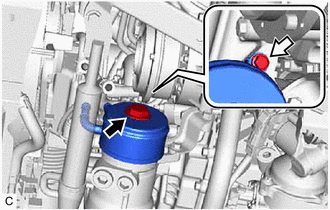

      GTY1084192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Oil Cooler Union Bolt
      Bolt
    5. Connect the No. 2 water by-pass hose and No. 8 water by-pass hose and slide the 2 clips to secure them.
  2. ADD ENGINE OIL

    See step  5

  3. INSPECT ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]

  4. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  5. INSPECT FOR ENGINE OIL LEAK

    See dstep  6

  6. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  7. INSTALL ENGINE UNDER COVER

    Refer to PROCEDURE - Step 89

  8. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2
