Inspection [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT OIL COOLER ASSEMBLY

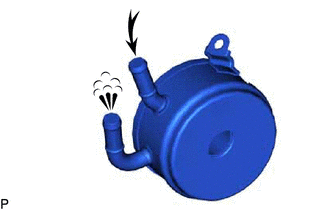

    1. GTY795448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Blow air into the oil cooler assembly and check for clogs.

      If there is a clog, replace the oil cooler assembly.

    2. Check the oil cooler assembly for damage or oil leaks.

      If there is damage or oil leaks, replace the oil cooler assembly.
