Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

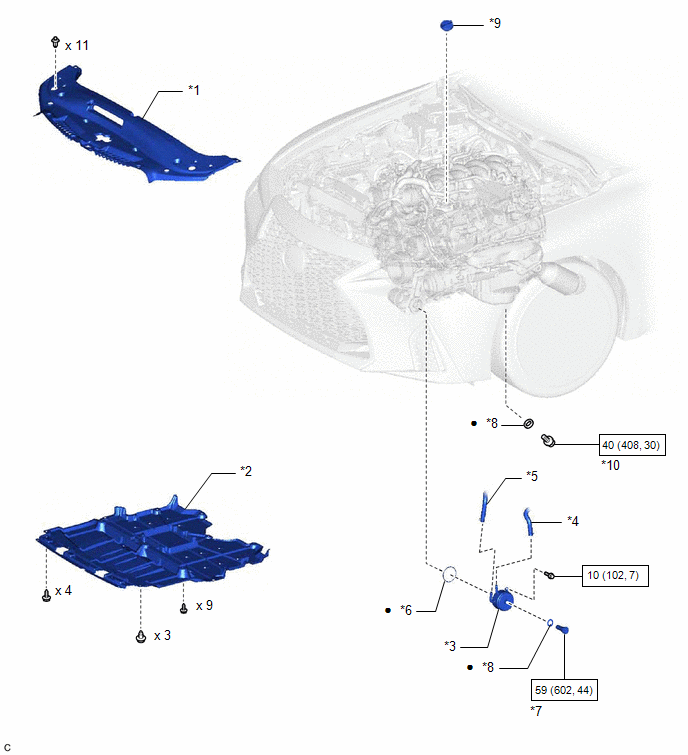

| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE UNDER COVER |
| *3 | OIL COOLER ASSEMBLY | *4 | NO. 2 WATER BY-PASS HOSE |
| *5 | NO. 8 WATER BY-PASS HOSE | *6 | O-RING |
| *7 | OIL COOLER UNION BOLT | *8 | GASKET |
| *9 | OIL FILLER CAP SUB-ASSEMBLY | *10 | OIL PAN DRAIN PLUG |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
