Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. DRAIN ENGINE COOLANT

    See step  3

  4. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. DISCONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 5

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 6

  7. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    See step  11

  8. REMOVE V-RIBBED BELT

    Refer to REMOVAL [11/2021 - ]

  9. DISCONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 27

  10. REMOVE WATER INLET HOUSING

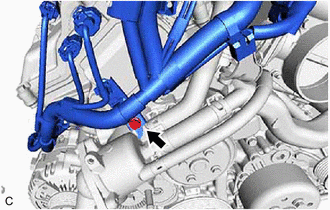

    1. Remove the bolt and disconnect the wire harness clamp bracket from the water inlet housing.
      GTY1084315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

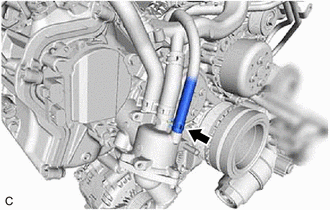

    2. Slide the clip and disconnect the No. 5 water by-pass hose from the water inlet housing.
      GTY1084316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

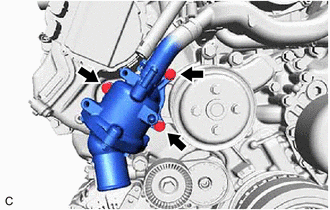

    3. Remove the 3 bolts and separate the water inlet housing from the engine water pump assembly.
      GTY1084303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the No. 1 water inlet housing gasket from the engine water pump assembly.

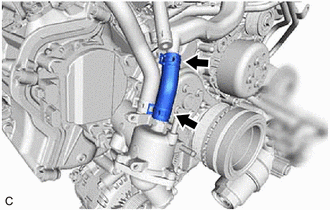

    5. Slide the 2 clips and remove the water inlet hose from the water inlet housing and front water by-pass joint.
      GTY1084304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

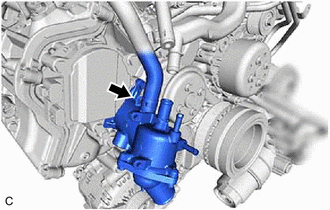

    6. Slide the clip and remove the water inlet housing from the No. 3 water by-pass hose.
      GTY1084312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE WATER PUMP PULLEY

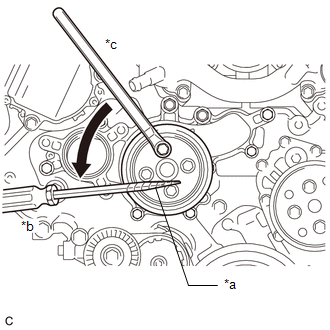

    1. Using a screwdriver or equivalent, hold the water pump pulley.
      GTY1084296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Hold
      *c Turn

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 4 bolts and water pump pulley.
  12. REMOVE ENGINE WATER PUMP ASSEMBLY
    1. Remove the 9 bolts, engine water pump assembly and water pump gasket.
      GTY103206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
