Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE WATER PUMP ASSEMBLY
    1. Install a new water pump gasket and the engine water pump assembly with the 9 bolts.

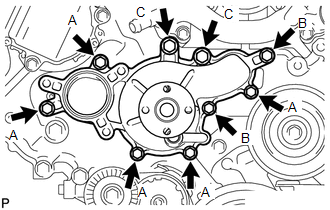

      GTY518884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

      Bolt (B)

      Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

      Bolt (C)

      Torque: 47 N.m (479 kgf/cm, 35 ft.lbf)

  2. INSTALL WATER PUMP PULLEY
    1. Temporarily install the water pump pulley with the 4 bolts.
    2. Using a screwdriver or equivalent, hold the water pump pulley and tighten the 4 bolts.

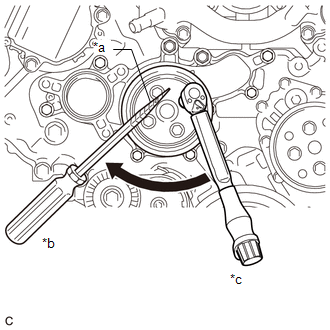

      GTY1084173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Hold
      *c Turn

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

      HINT:

      Tape the screwdriver tip before use.

  3. INSTALL WATER INLET HOUSING
    1. Install the water inlet housing to the No. 3 water by-pass hose and slide the clip to secure it.
    2. Install the water inlet hose to the water inlet housing and front water by-pass joint and slide the 2 clips to secure it.
    3. Install a new No. 1 water inlet housing gasket to the engine water pump assembly.
    4. Install the water inlet housing to the engine water pump assembly with the 3 bolts.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

      NOTE:

      Be careful not to allow the No. 1 water inlet housing gasket to get caught between the parts.

    5. Connect the No. 5 water by-pass hose to the water inlet housing and slide the clip to secure it.
    6. Connect the wire harness clamp bracket to the water inlet housing with the bolt.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  4. CONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 53

  5. INSTALL V-RIBBED BELT

    Refer to INSTALLATION [11/2021 - ]

  6. INSTALL RADIATOR RESERVE TANK ASSEMBLY

    See step  11

  7. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  8. CONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 3

  9. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 91

  10. ADD ENGINE COOLANT

    See step  4

  11. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  12. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  13. INSTALL ENGINE UNDER COVER

    Refer to PROCEDURE - Step 89
