Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

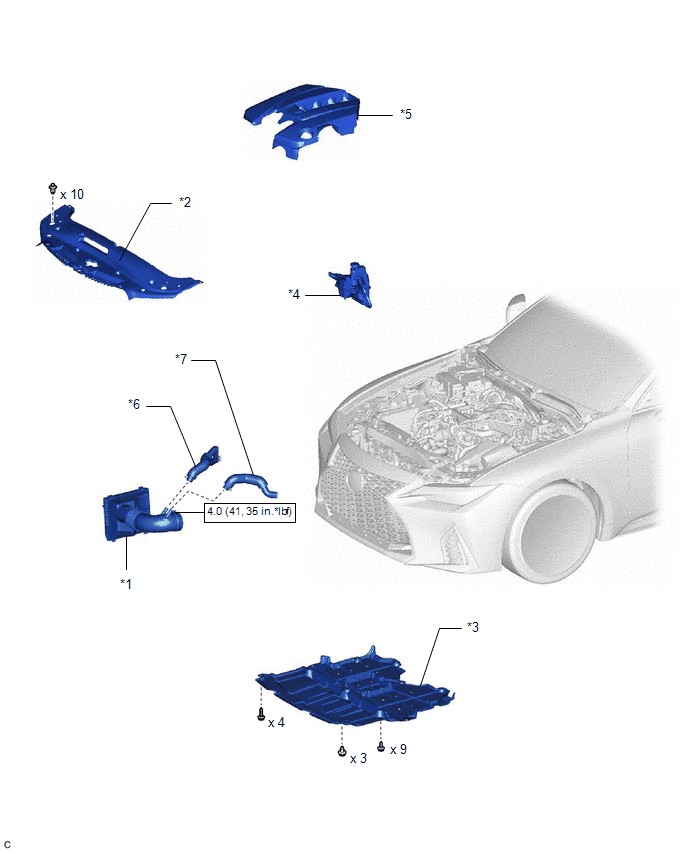

| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | ENGINE UNDER COVER | *4 | RADIATOR RESERVE TANK ASSEMBLY |
| *5 | V-BANK COVER SUB-ASSEMBLY | *6 | NO. 2 VENTILATION HOSE |
| *7 | NO. 3 VENTILATION HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

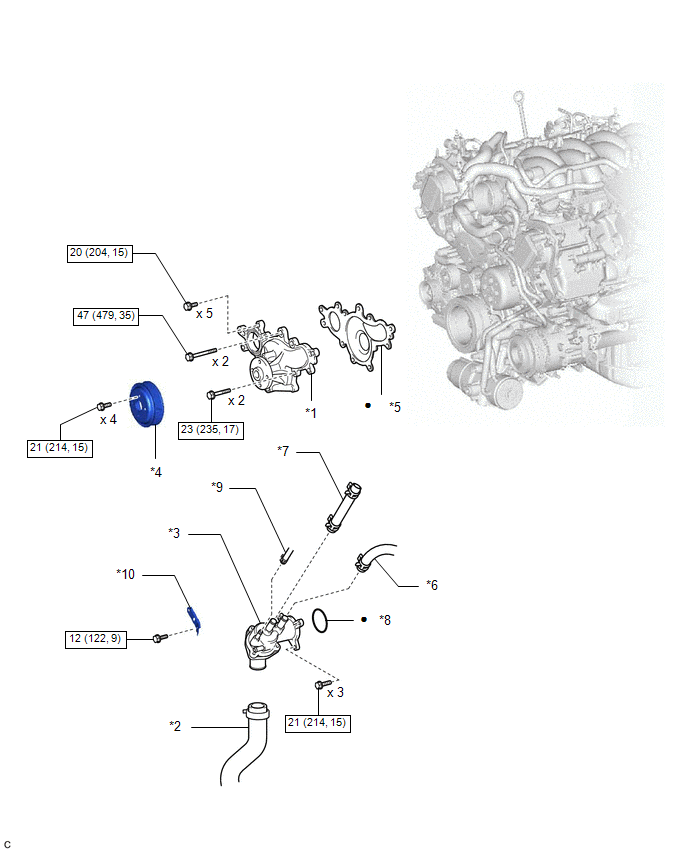

| *1 | ENGINE WATER PUMP ASSEMBLY | *2 | NO. 2 RADIATOR HOSE |
| *3 | WATER INLET HOUSING | *4 | WATER PUMP PULLEY |
| *5 | WATER PUMP GASKET | *6 | NO. 3 WATER BY-PASS HOSE |
| *7 | WATER INLET HOSE | *8 | NO. 1 WATER INLET HOUSING GASKET |
| *9 | NO. 5 WATER BY-PASS HOSE | *10 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
