Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE CENTER NO. 4 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 2

  3. DRAIN ENGINE COOLANT

    See step  3

  4. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  5. DISCONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 5

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 6

  7. DISCONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 27

  8. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

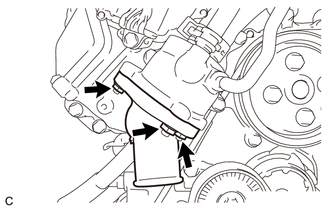

    1. Remove the 3 nuts and water inlet with thermostat sub-assembly from the water inlet housing.
      GTY1084307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 2 water inlet housing gasket from the water inlet with thermostat sub-assembly.
