Components [11/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

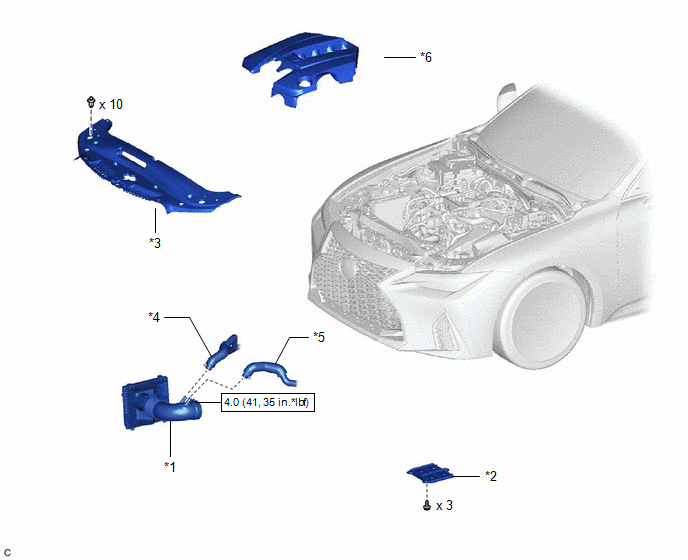

Fig 1: Thermostat Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	CENTER NO. 4 ENGINE UNDER COVER
*3	COOL AIR INTAKE DUCT SEAL	*4	NO. 2 VENTILATION HOSE
*5	NO. 3 VENTILATION HOSE	*6	V-BANK COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

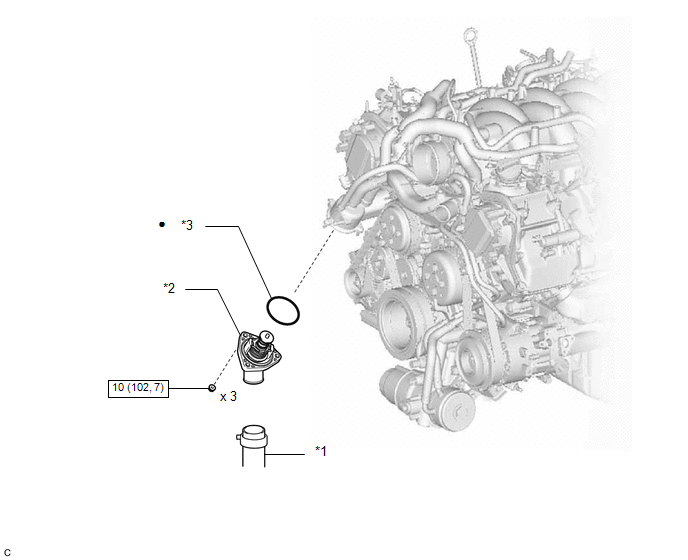

Fig 2: Thermostat Replacement Components With Torque Specifications (2 Of 2)

*1	NO. 2 RADIATOR HOSE	*2	WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
*3	NO. 2 WATER INLET HOUSING GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
